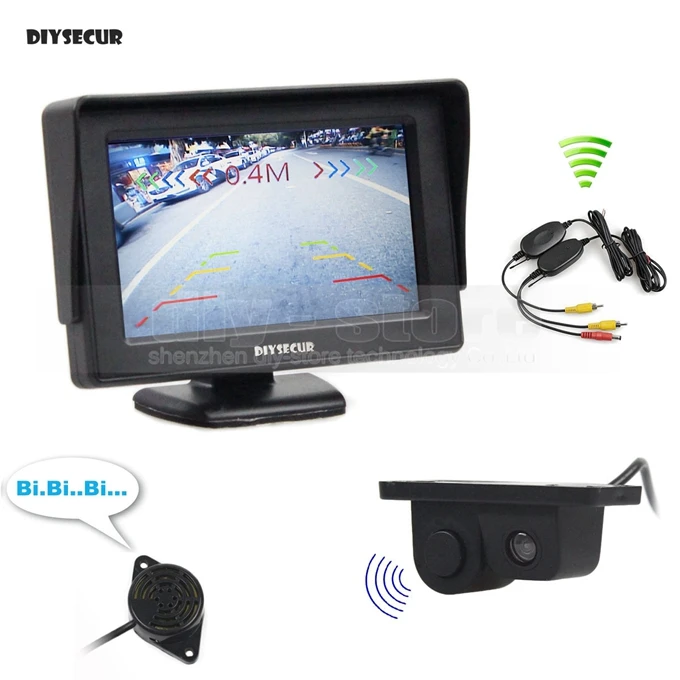

Wireless 4.3 inch TFT LCD Car Monitor Rear View Camera Parking System
The best solution for your car reverse system Waterproof Parking Radar camera with wide view angle 2.4GHz Wrieless video transmission
High quality TFT LCD monitor
2 channel video inputs
Easy installation

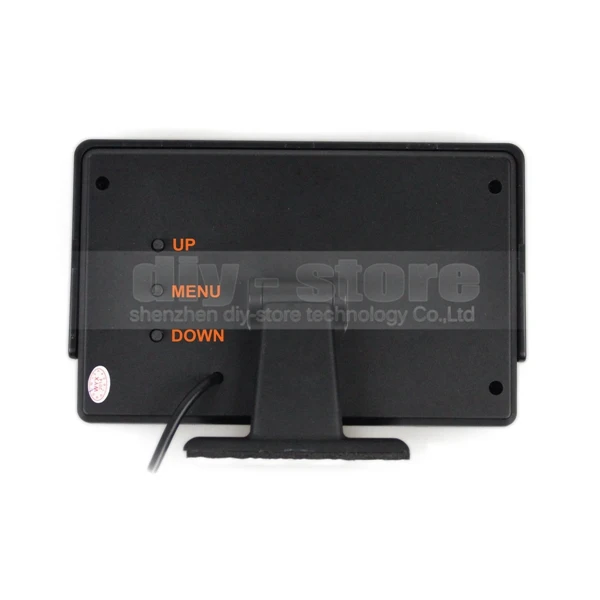

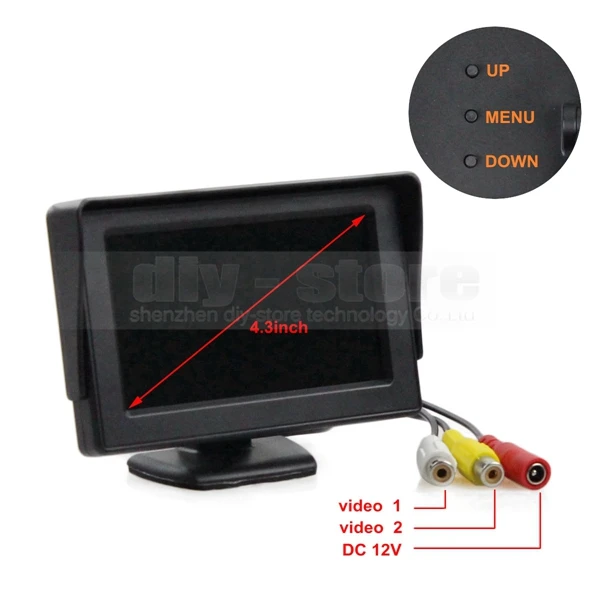

4.3inch Color TFT LCD Car Monitor with 2 Video Input
Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.
- Since reversing camera is connected to your car’s reversing light power cable, when you reverse the car, the reversing camera will be powered on. And monitor will display video input 1 whose signal comes from reversing camera.
- When car leave reserving mode, reversing camera is powered off. The monitor will switch to input 2 display.
Camera:
This Color CMOS Car Rear view Camera is a new and never used high quality color camera. With High-definition wide view angles and good waterproof functions, its perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.
- Build in parking sensor, can display both image and distance
- High-definition and 120 degree wide view angles
- With good waterproof function.
- Applicable to variety of Vehicles: car, truck, RV, mini-van etc
- Solve the issue of bad car rear view effect, can help reduce incidents and accident
- With its elegant and contemporary design, this camera is very popular
- When the car back up, the Image will show Reverse leading line
- Made of high quality and durable material
- Its simple and modest design and small size won’t draw any attention.
- We will send NTSC / PAL according to your country, if you have other requirements, please leave a message.
The alarm sound would become more rapid when the distance gets shorter and shorter, alarm mode and danger mode.

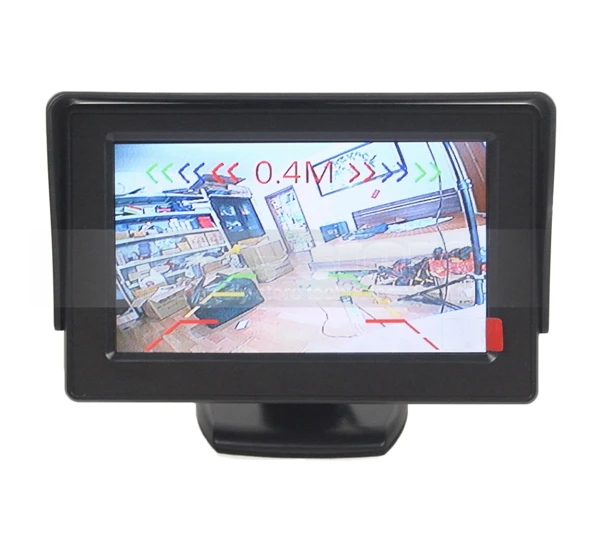

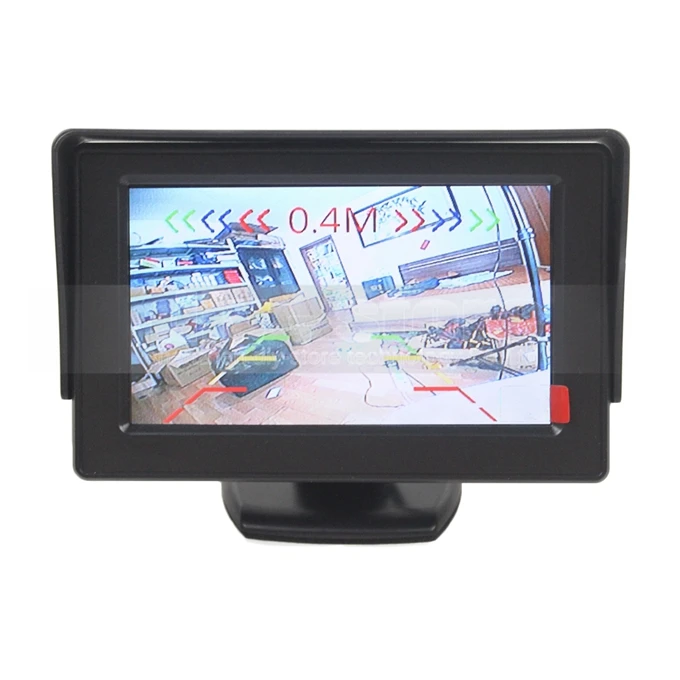

This is the camera image, there are both image and distance.
2.4G Wireless transmission & receriver
Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.
Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.
- Range of the transmission: 8m-12m
- The shorter the distance between camera and monitor, the better transmission signal
- The image can be seen clearly without any obstacles
- Enter the “R”. Car Mirror Monitor display automatically rear view image
- Enter the “N” or “D”. Car Monitor don’t display image or display AUX Video image.
Specifications:
Monitor:
- Show foot size: 4.3 inch.Displays: TFT-LCD
- Resolution: 480 (H) x 234 (V)
- Power: 2W
- Video Input: AV1/AV2
- Signal format: PAL / NTSC / AUTO
- Brightness: 250 CD / m⊃2;
- Contrast: 300:1
- Rated Voltage: DC 12V
Camera:
- Camera image type: High performance color image
- Horizontal resolution: 420TV Lines
- Detection Range: 0.3m – 2m
- Detection Angle: 30 degree
- Alarming Vol: 70dB-90dB
- Minimum illumination: 0.1Lux
- Free viewing angle: 120º
- Waterproof: IP67
- Shockproof: 10G
- Video output: 1.0Vp-p75
- Power supply: DC 12V
- Video system: NTSC / PAL

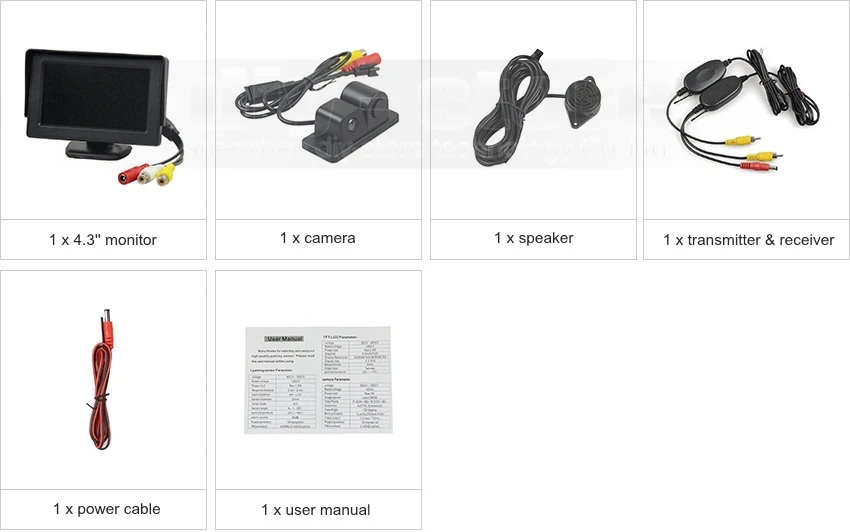

Packing list:
