9″ Video Door Phone Intercom System Keyfobs Unlocking
Video Record / Photograph, Touch Button and UI Interface.
1 x Outdoor Unit & 6 x Indoor Monitor
Description
Video door phone is a system that enables you to receive “calls” from your front door or some other door on the outside of your building, which enables you to actually see who is at the outside station and talk to them. It will add security and peace of mind to your house.
The item you are watching now is our new arrival video door phone system. It has nice appearance and excellent performance. About the outdoor unit, a 700tvl camera lets you see clearly who is at the door, built-in led lights enhance the night view, the acrylic panel and rainproof cover provide a good protection for it. About indoor monitor, a 9 inch LCD color screen gives you great view, touch button and UI interface. Besides, it is wire system, the installation is not difficult, both of the outdoor unit and indoor unit have plug-and-play connector. It is a great system for home intercom and security.
It supports Handsfree Dual-way Intercom, Indoor Monitoring, Indoor Unlocking, Night Vision Keyfobs Unlocking. It contains 1 outdoor unit and 6 indoor unit. It supports Max 2 outdoor units and 6 indoor units, if you need more cameras and monitors, please feel free to contact us. (For 2 outdoor unit kit, you need a mutil door controller; for 5 or 6 indoor units kit, you need a mutil monitor amplifer.)
Main Functions Fashionable Apperance and Outstanding Video&Audio Performance
The outdoor unit has acrylic panel and rainproof cover for better protection, which is suitable for outside mounting. The indoor unit has good shape, touch button looks more fashionable. Stable microphone and speaker provide better Video&Audio performance.
If you use NO lock, you can connect it to outdoor unit directly without extra power supply. But for an NC strike lock or magnetic lock, you need to add an extra 12V power supply module. We can provide such power supply module, electrical lock, remote controller and exit button, if you need these kits, please contact us for quotation.
Applications
This apartment door phone system is mostly used in 6 units apartment or 6 families house, which allows the vistor call separate room directly.
Other options
We provide more options for the outdoor and indoor unit. There are several models that you can choose as you wish, please contact us for quotation with the model.
Specifications:
Outdoor Camera | |
Model No. | IDP |
Night Vision | 5 LED Light, visible within 2 meters |
Vision Angle | 90 Wide Angle |
Resolution | 700 TV Line |
Plus Control | Automatically |
Power Consumption | Standby: 0.1W; Working: 4W |
Working temperature | -10°c~+55°c |
Installation | Wall mounted |
Material | Aluminum alloy and ABS |
Size | 187(L)*98(W)*35(H)mm |
Net Weight | 500g |
Indoor Monitor | |
Model No. | V90Rm |
Screen | 9” wide angle TFT LCD, 16:9 Display |
Resolution | 800*RGB*480 |
Power input | AC100V-240V 50Hz-60Hz |
Delay Calling time | 120s 10% |
Delay Monitoring time | 40s 10% |
Valid Distance | 100M (4×0.75 mm2) |
Power Consumption | Standby: 1W; Working: 10W |
Adapter Input | AC100~ 240V, 50/60Hz |
Adapter Output | DC 15V |
Working Temperature | -40°c~+70°c |
Standby Temperature | -20°c~+60°c |
Installation | Wall mounted/lift on desk |
Size | 230(L)*165(W)*20(H)mm |
Materail | ABS |
Net Weight | 850g |

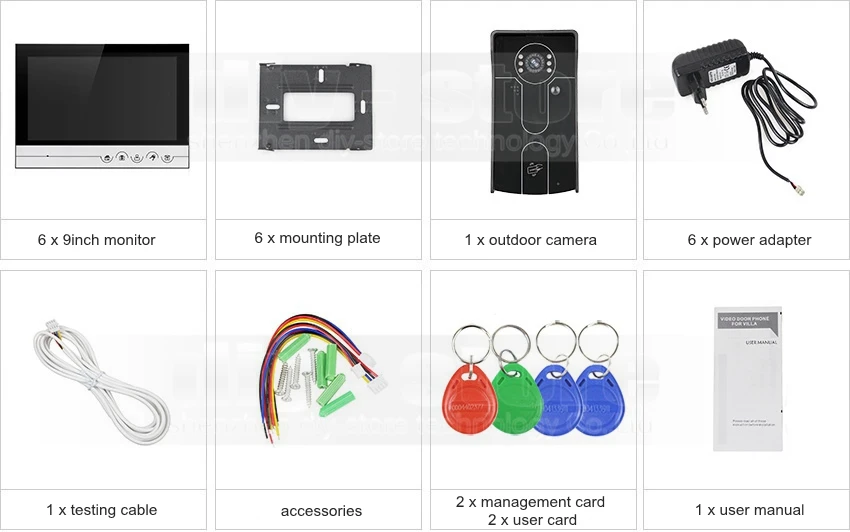

Packing list:
