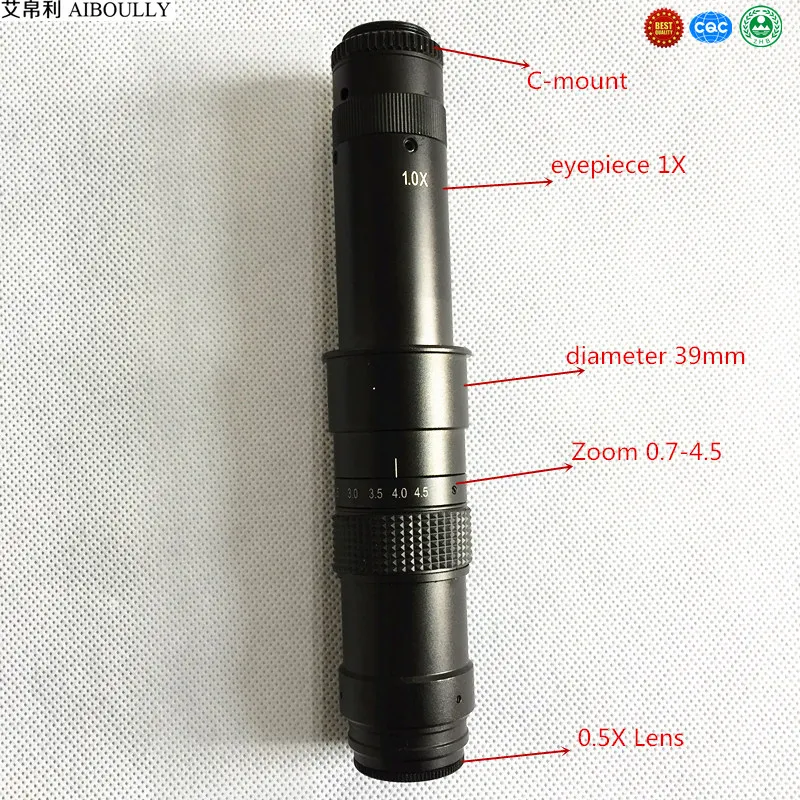

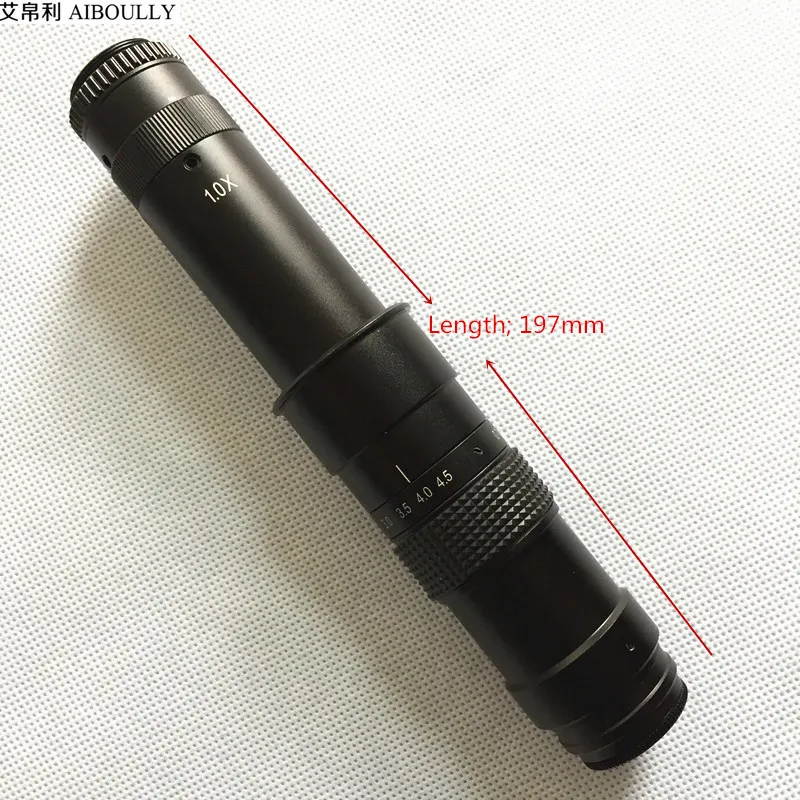

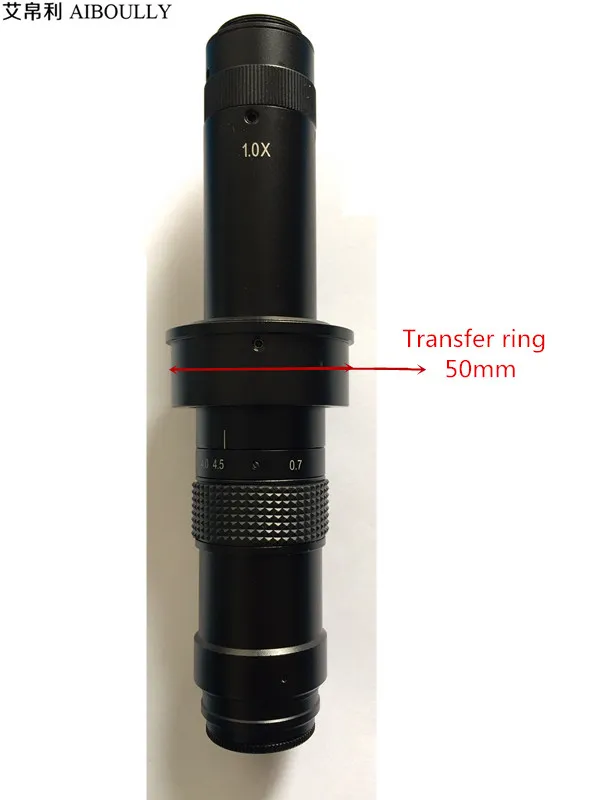

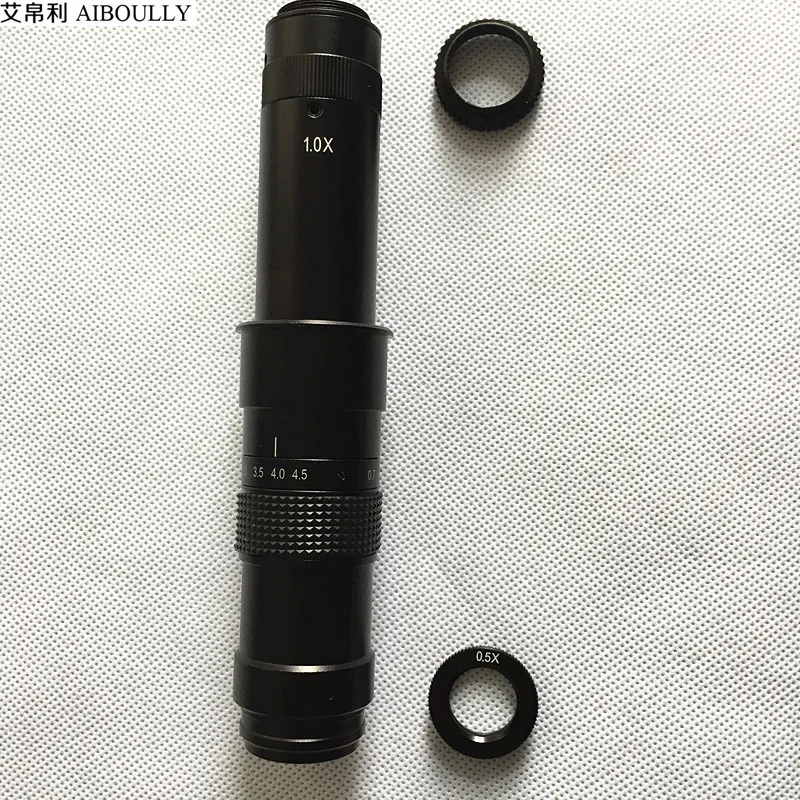

XDC-0745 lens set high-definition, high depth of field of three-dimensional images, flexible zoom and other characteristics of the mirror body. Users can choose according to magnification, working distance, field of view, depth of field and other needs of the purchase of different objectives and eyepiece. Can be connected to a variety of microscope light source: circular fluorescent lamp, ring LED lights, fiber optic cold light source. Widely used in microelectronics, semiconductor, PCB, plastic, fiber, printing, research, optoelectronics and other industrial materials test analysis. Host zoom range; 0.7X ~ 4.5X Video magnification range; 18X ~ 185X (15-inch LCD monitor) Total magnification; Optical zoom * Digital zoom Working distance; 90-200mm (no added objective lens) Camera eyepiece; 1X Assisted objective lens; 0.5X Zoom ratio; 1; 6.5 Host installation size; 50mm Lens length; 197mm Magnification calculation Total multiple = optical magnification * Digital magnification Optical magnification = magnification of the main objective lens magnification (0.7X ~ 4.5X) × eyepiece magnification (standard 1X) × auxiliary objective 0.5 magnification Digital magnification and electronic eyepiece specifications and display (TV or computer monitor) specifications. Working distance: only with the main objective lens and additional large magnification lens related Object field of view diameter = CCD camera target surface diagonal size / optical magnification
