Traot TL810A Carbon Fiber Frame with APM 2.8 Flight Controller set & 320KV motor & hobbywing ESC &TL2812 propeller FPV Multi-Rot

TL15t00 TL810A Carbon Fiber Frame with APM 2.8 Flight Controller set & 320KV motor & hobbywing ESC &TL2812 propeller FPV Multi-Rot Tarot-RC TL810A Carbon Fiber Frame Product Description :

• Tarot T810A adopts the high quality 3K pure carbon fiber board and pipes which imported from famous TORAY company in Japan. The Kit is manufactured by CNC with more serious standard than similar product. The overall weight of the Kit is ONLY 1050g. Completely folding design aim at the customers who want high portability. It quite suit for monitoring, remote sensing, surveying, FPV etc. such activities do not request high load ability but need long flying time.

  Features:

  • Folding design makes the wiring and carrying very easy and avoid to use more connectors.
  • All the cover boards adopt M3 nuts self-locking on the carbon board, which screws have the specially designed technics with excellent ability for transverse shock resistance.
  • The folding locating parts adopt newly designed metal swallow-tailed falcon riveting structure with super chucking power.
  • Light weight dual-color motor fixing mounts using CNC processing, the overall shape has great visual effect to provide clear direction identifying in the air. The multi in one gilded wire hub is standard configuration.
  • The kit’s flying load is 3.0kg, designed max load-bearing is 15kg.

  Specification:

  • Weigh: 1020g
  • Pipe diameter: 25mm
  • Wheel base: 810mm
  • Diameter of the frame: 850mm
  • Size of the centre board: 210x210x2.0mm
  • Pitch-row of the motor installation: 16mm/19mm/25mm/27mm

  Recommended config:

  • Motor: 320KV (Tarot 4114)
  • Propeller: 1555
  • ESC: 30-40A
  • Battery: 6S LiPo 10000-15000mAh

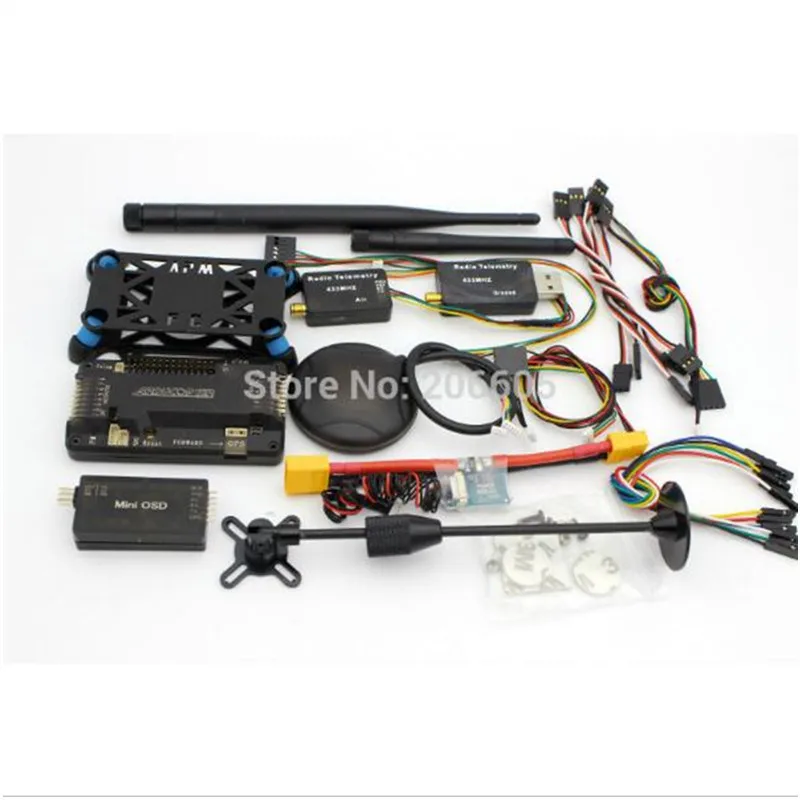

​APM 2.8 Flight Controller set

APM V2.8.0 description: – This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface. – Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass. – V2.52 I2C interface changes to multifunctional MUX interface – Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided – V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health APM V2.8.0 Flight Controller – Needle: staight – Power supply: LP2985-3.3 – Max voltage: 16V – Add a 47uF tantalum capacitor – Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output) Jumper cap choose: – Built-in compass: plug the jumper cap in the MAG pin header. – External compass: pull up the jumper cap from the MAG pin header. 320KV motor Specification:

• Motor outside diameter: 46.00mm
• Stator diameter: 41.0 mm
• Stator end thickness: 14.0 mm
• Stator end: 24N
• The number of motor poles: 22P
• Diameter: 0.31mm
• Per volt speed: 320 RPM / Volt
• 22.2V empty-Load Current: 0.5 Amps
• Motor internal resistance: 126 m
• Motor Weight: 148 grams
• Gear shaft mounting diameter: Dia 4.0 mm
• Motor Length: 32.0 mm
• Motor shaft total length: 37.0 mm

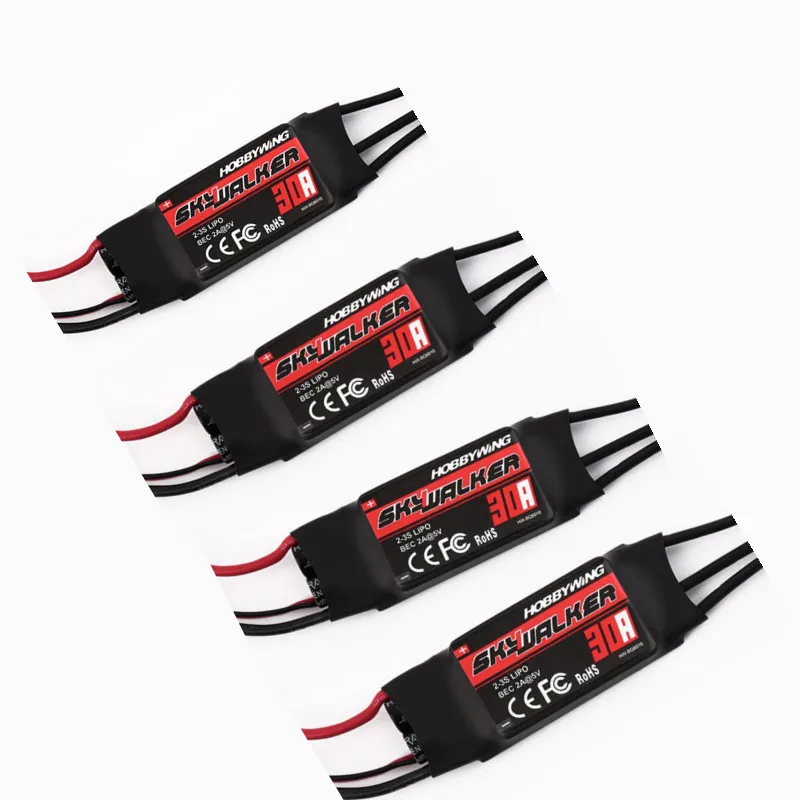

Hobbywing Skywalker 30A ESC：

Specification:

1.power input:2-4 cell lipo battery or 2-12 in-nh battery units

2.BEC output:2A(Linear Mode)

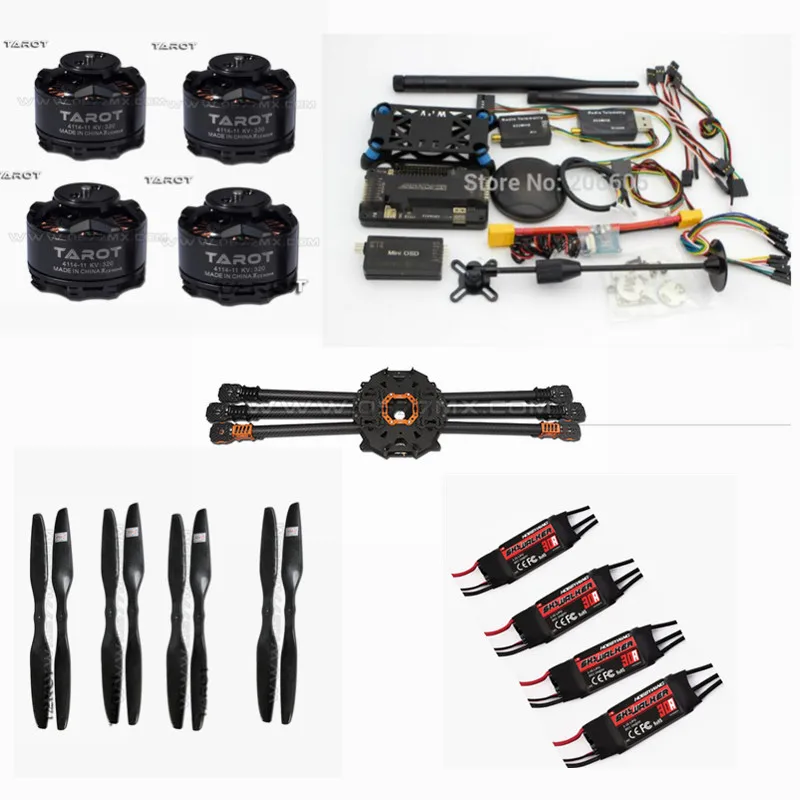

Package includes:

• Carbon Fiber Quadcopter frame kits x 1
• Side-pin APM 2.8 main board with sell x1
• M8N GPS with Compass and Shell x1
• Power Module x1
• Minim osd With Shell x1
• 3DRobotics 915Mhz / 433 Mhz Telemetry(Air + Ground Module) with shell x1
• M8N GPS Foldable Stand Black x1
• 320KV motor X6
• Hobbywing Skywalker 30A ESC X6

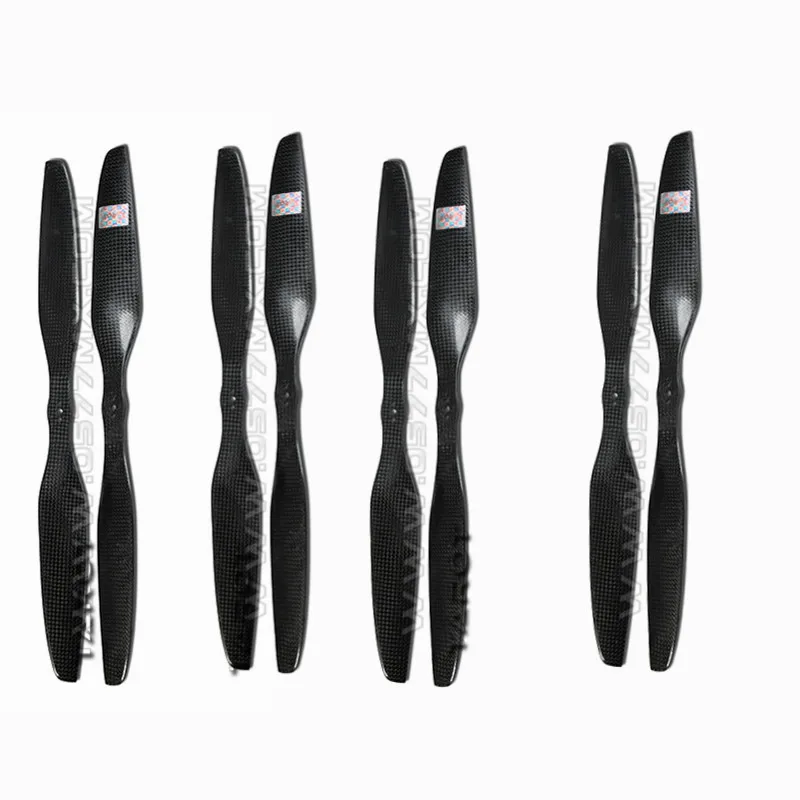

• TL2812 propeller x 6 pair
