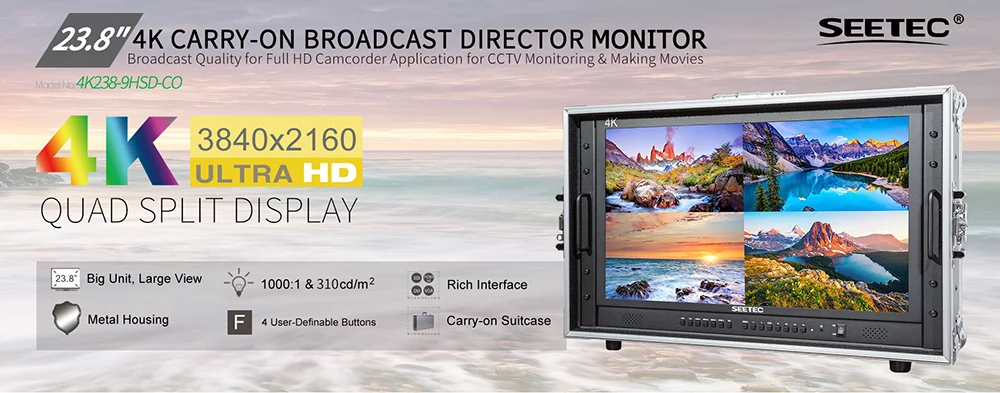

SEETEC 4K238-9HSD-CO Carry on Broadcast Director Monitor 23.8” 4K Ultra HD 3840×2160 LCD IPS Screen with HDMI 3G SDI DVI VGA

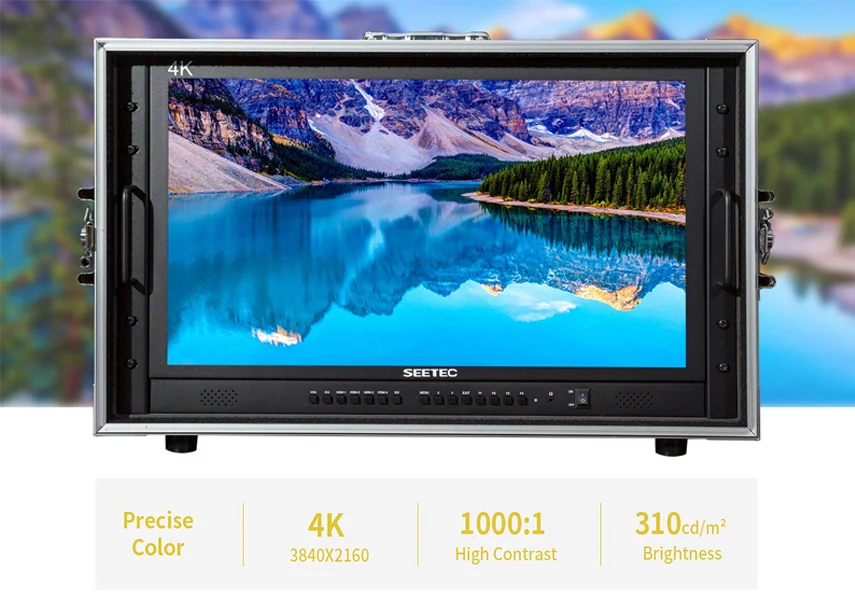

23.8” 4K Ultra HD Resolution

The SEETEC 4K resolution(3840×2160) 23.8” LCD monitor delivers an immersive 4K experience for images and

video, bring unbeatable image clarity in cinematic display.

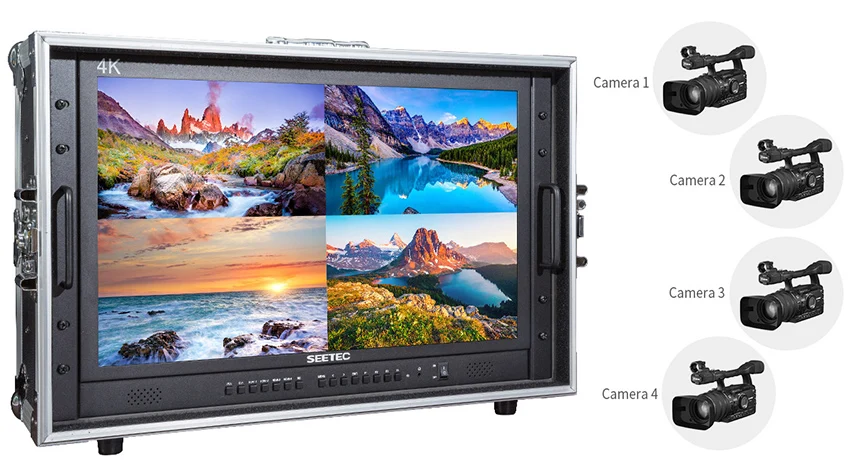

Quad Split LCD Display

SEETEC new 4K238-9HSD-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides

a new display solution for a wide range of applications that require ultrahigh resolution contents.

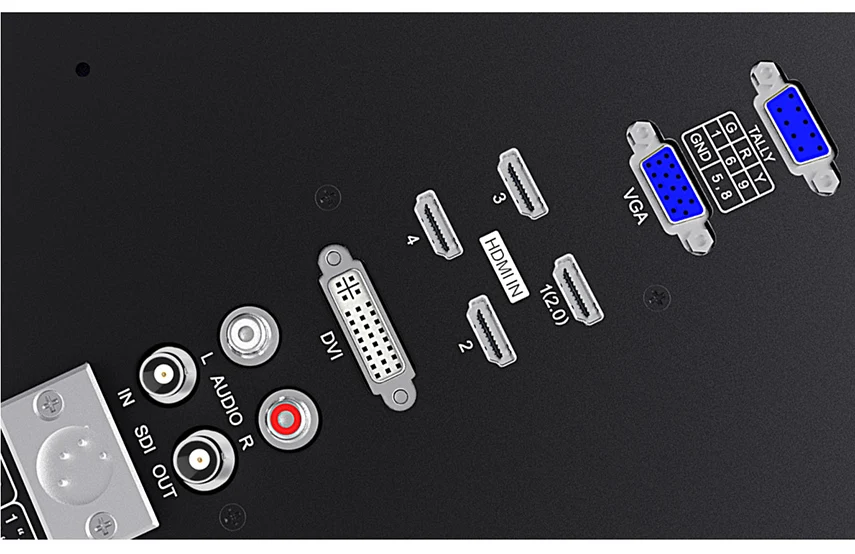

Rich Interfaces

Multiple inputs meet the best need of various professional display solutions.

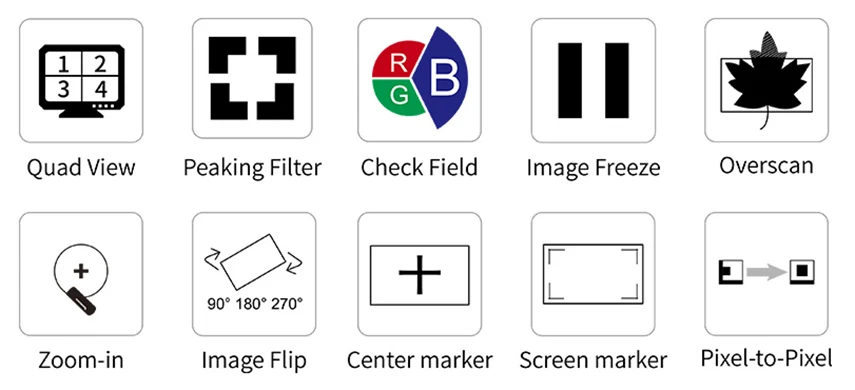

More Auxiliary Functions

More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

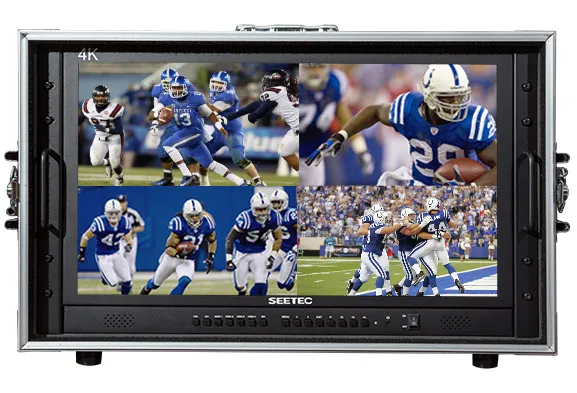

Quad View

Support 4x 4K HDMI, 3G-SDI, VGA, DVI input

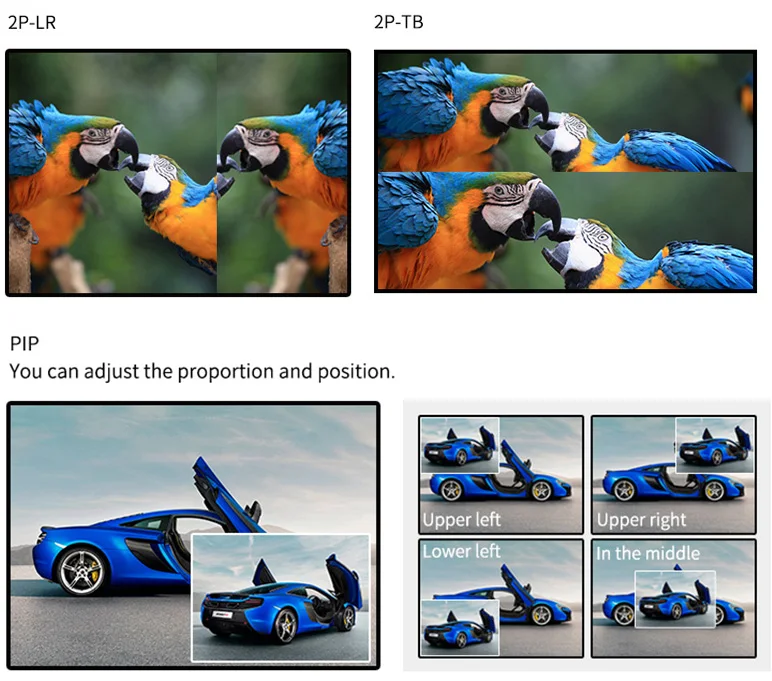

Dual View

Meet your different screen display needs.

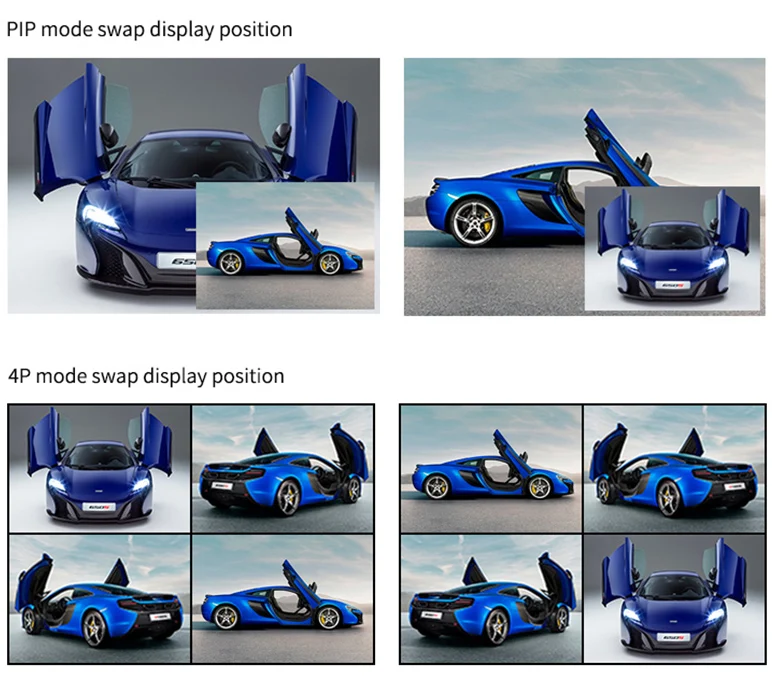

Input Swap

To exchange the input signal of the split screen.

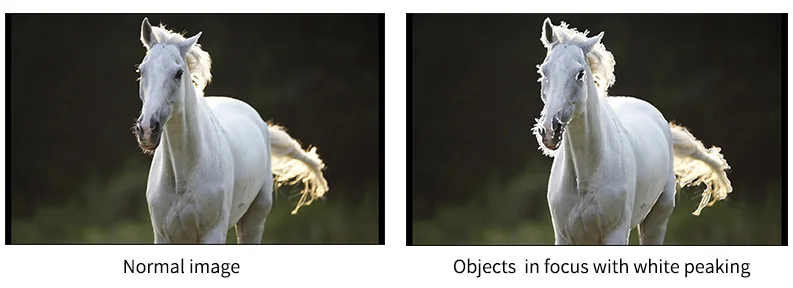

Peaking Focus Assist

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the

internal processor will display a colored highlight on the screen where sharp edges appear. It’s shows white highlight

over parts of the image in focus.

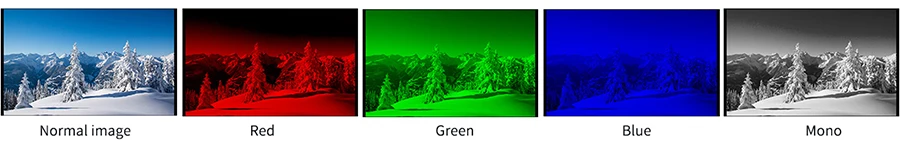

Check Field

Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red,

green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and

accurately in this environment.

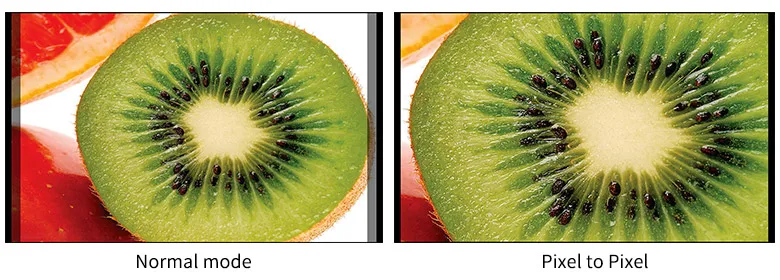

Pixel to Pixel

Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for

capturing optimum detail.

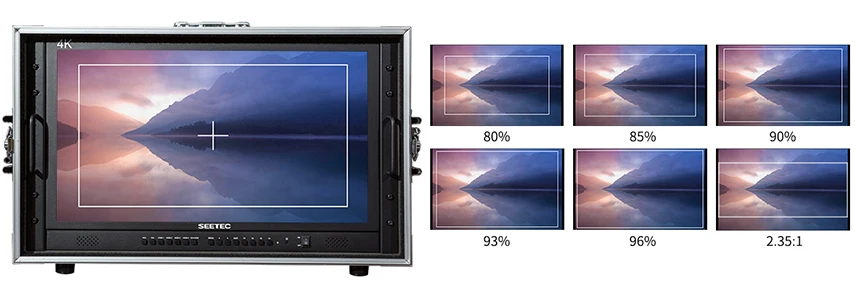

Center Marker & Safe Marker

Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color

between Red, Green, Blue and White according to different tone of the subject.

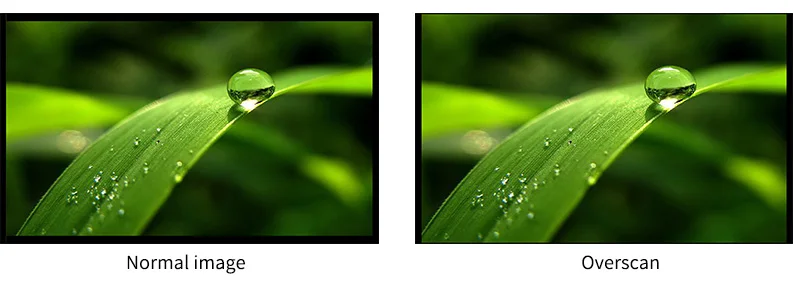

Over scan Mode

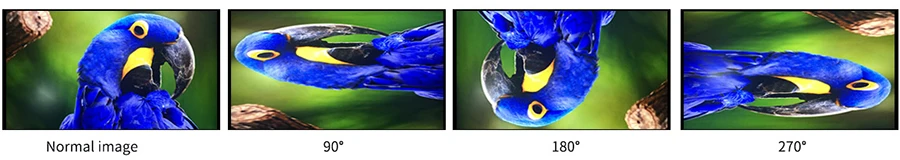

Image Flip

The 90°, 180°, 270°of the image around flip.

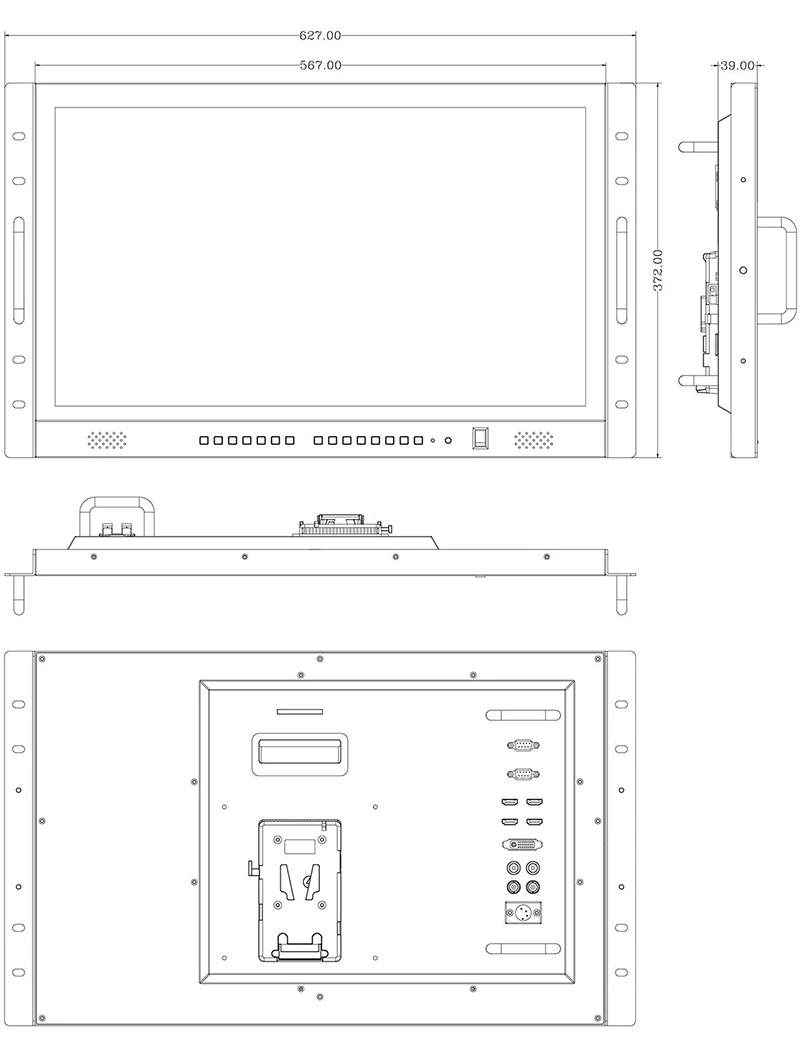

Dimensions (Unit: mm)

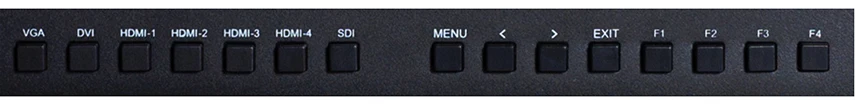

High Efficiency OSD Operation Design

You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut

function, such as peaking, check field, display rotate, center marker, safe marker etc.

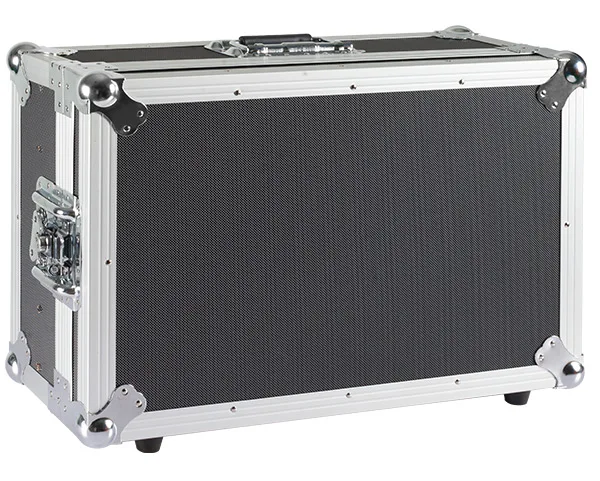

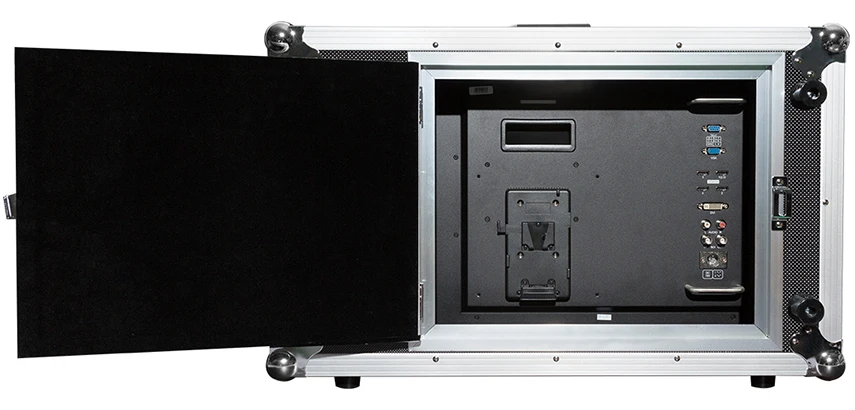

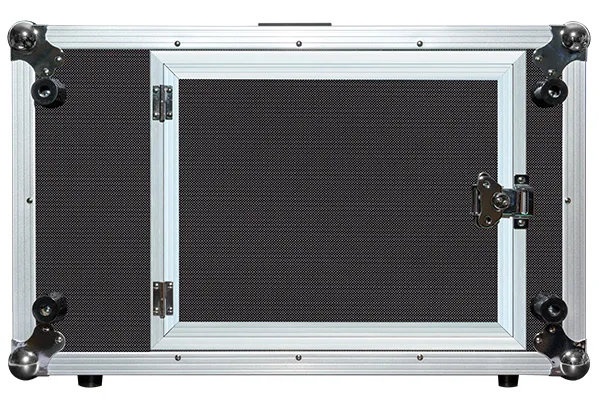

Innovative Design Portable Aviation Aluminum Case

Specifically Design for Field Production

Unique Design for High Efficency

Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during

production. The 4K238-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or

setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go

through.

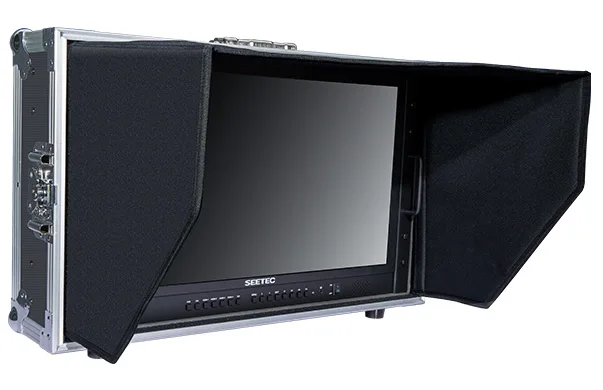

Collapsable Sunshade

Design for easier viewing in bright environments.

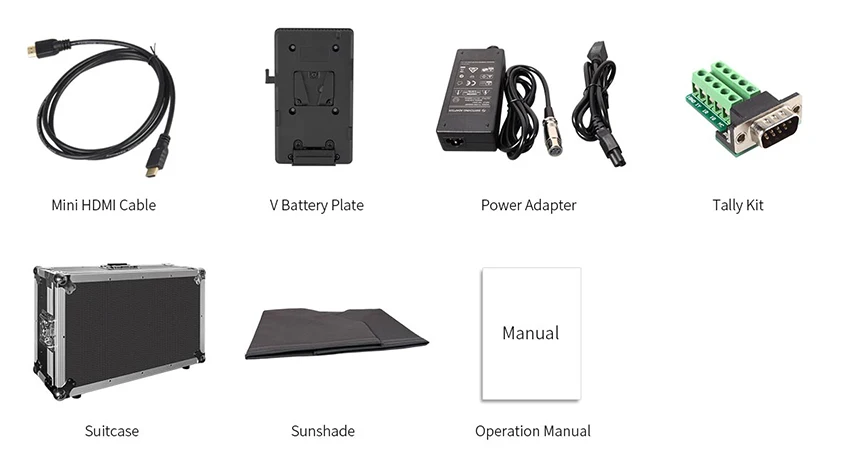

Standard Package Includes

1X Mini HDMI Cable, 1X V Battery Plate, 1X 5A Power Adapter, 1X Tally Kit, 1X Suitcase, 1X Sunshade,

1X Operation Manual
