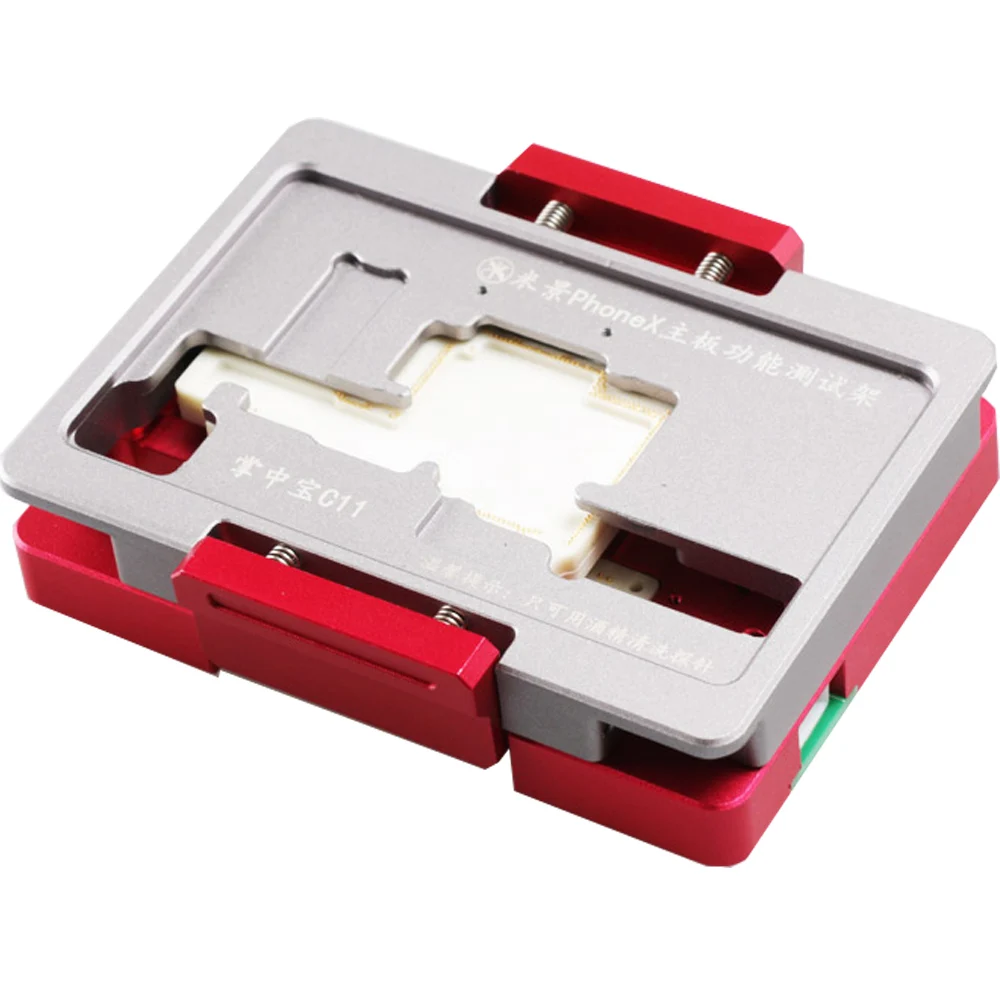

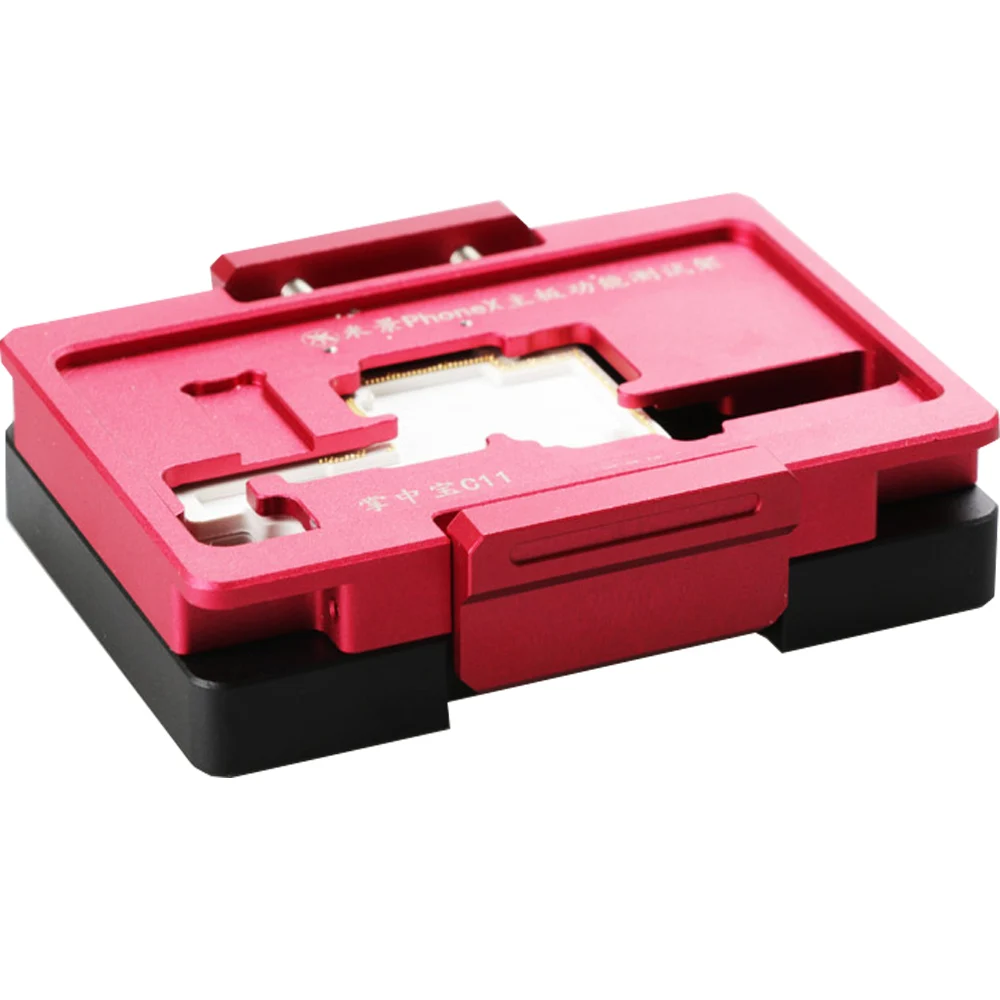

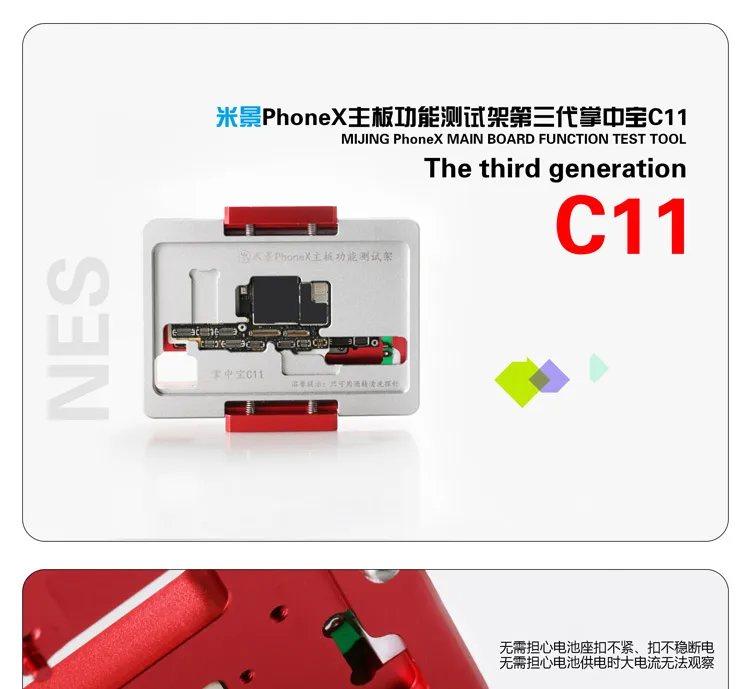

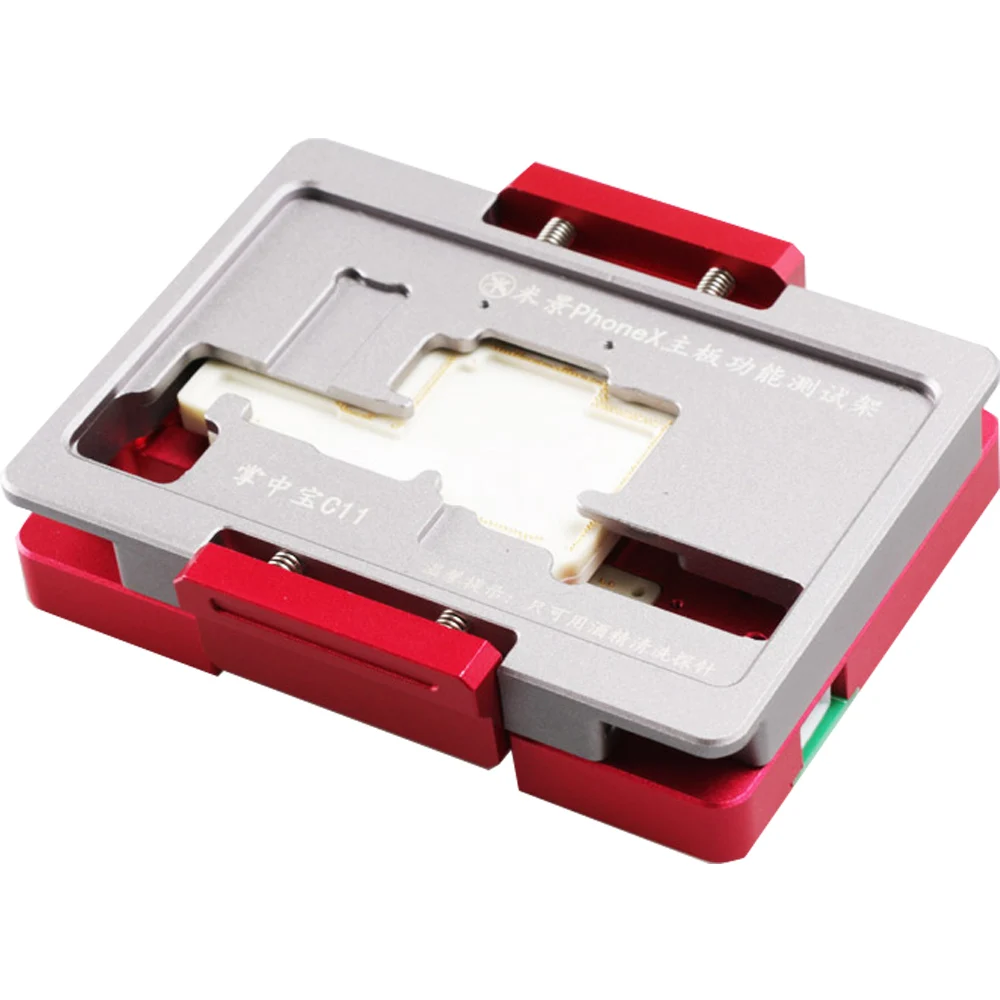

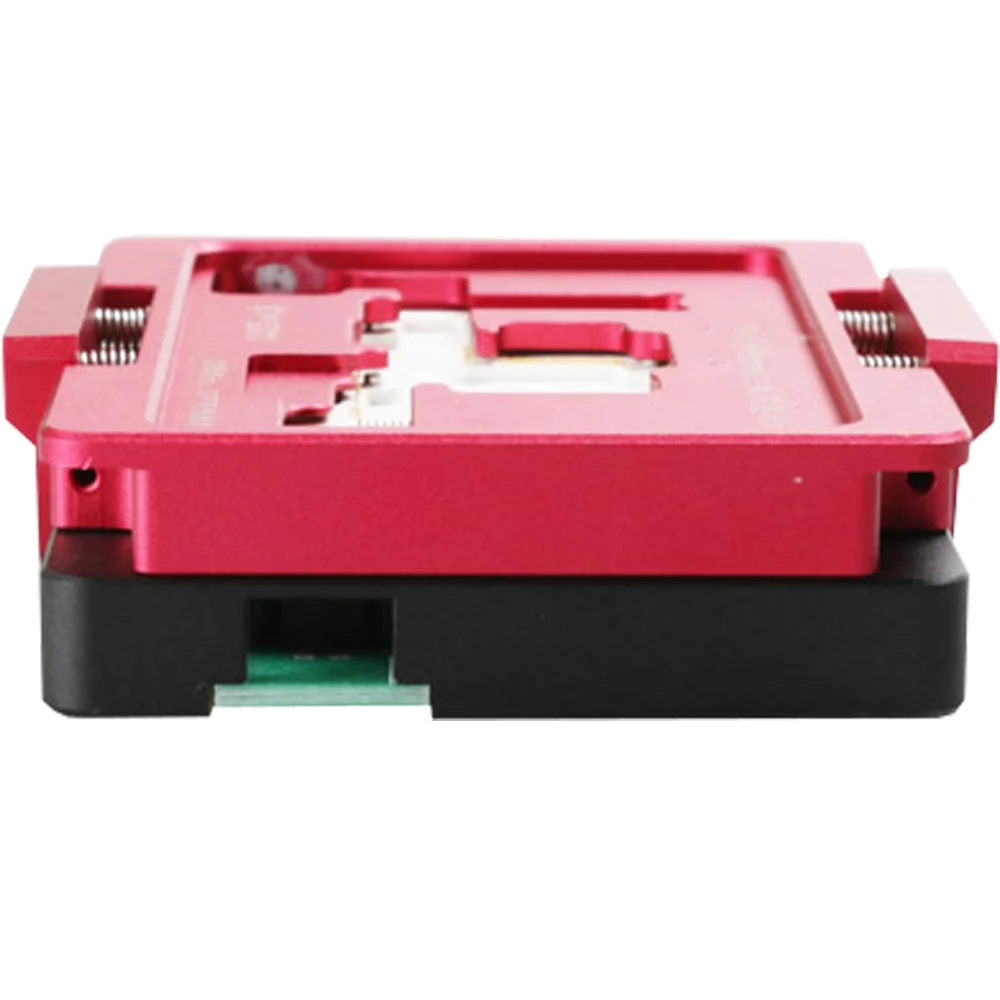

iphone X motherboard function test frame third generation palm treasure C11 splicing upper and lower motherboard test frame
Advantage:

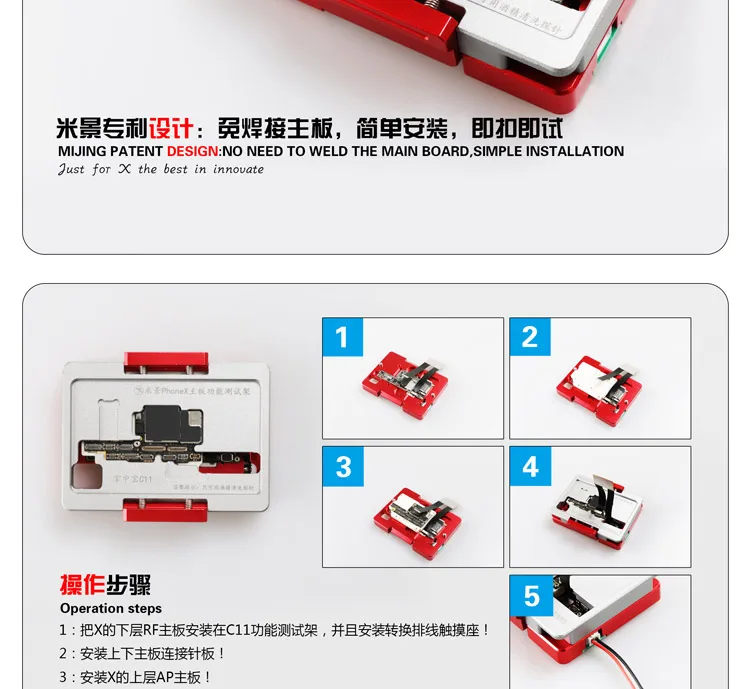

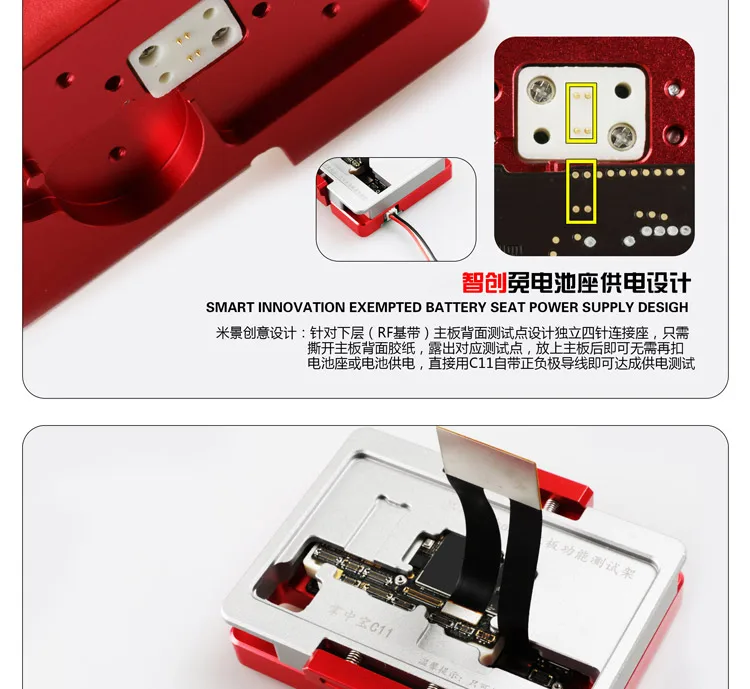

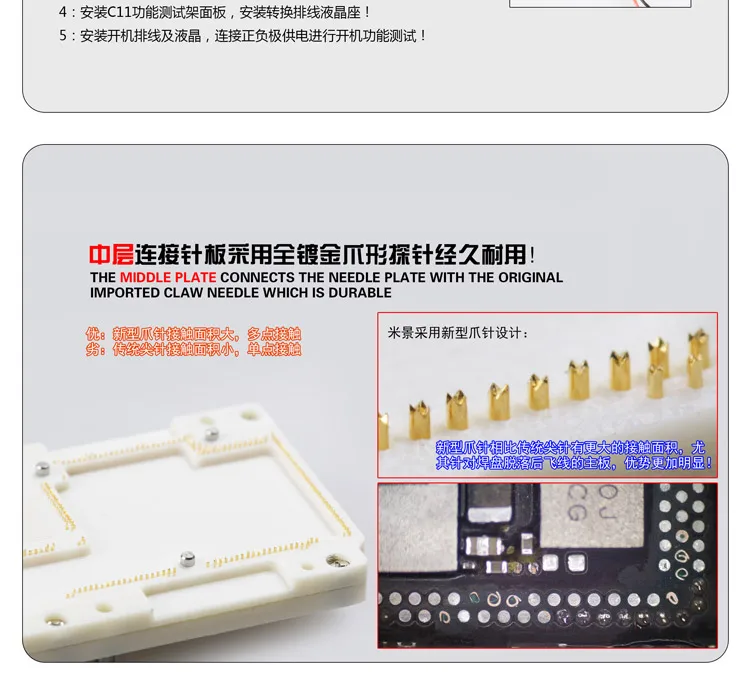

No need to worry about the battery seat buckle is not tight, the buckle is not stable and power off No need to worry about the high current cannot be observed when the battery breaks No need to solder the motherboard, simple installation, that is, deduction New claw pin, large contact area, durable Design an independent four-pin connector for the test points on the back side of the motherboard (RF baseband). Simply tear the adhesive tape on the back of the motherboard to expose the corresponding test points. After placing the motherboard, you can use the C11 directly without having to depress the battery holder or the battery. With positive and negative wire can achieve power supply test. Steps: 1: Install the lower RF board function of X in the C11 test frame and install the conversion cable touch pad. 2: Install the upper and lower motherboard connection pin board 3:Install the upper AP motherboard of X 4:Install C11 function tester panel, install conversion cable LCD holder 5:Install boot cable and LCD, connect positive and negative poles to test boot function
