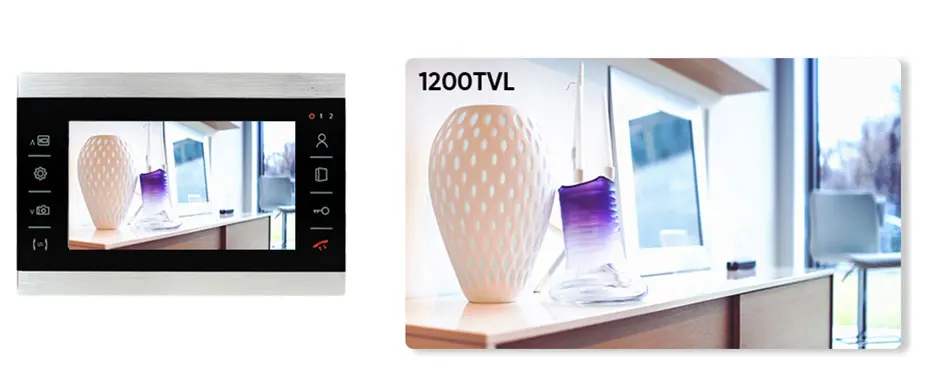

1200TVL High Resolution
1200TVL High Resolution HD CMOS,make you see sharper and more details than 800TVL / 600TVL

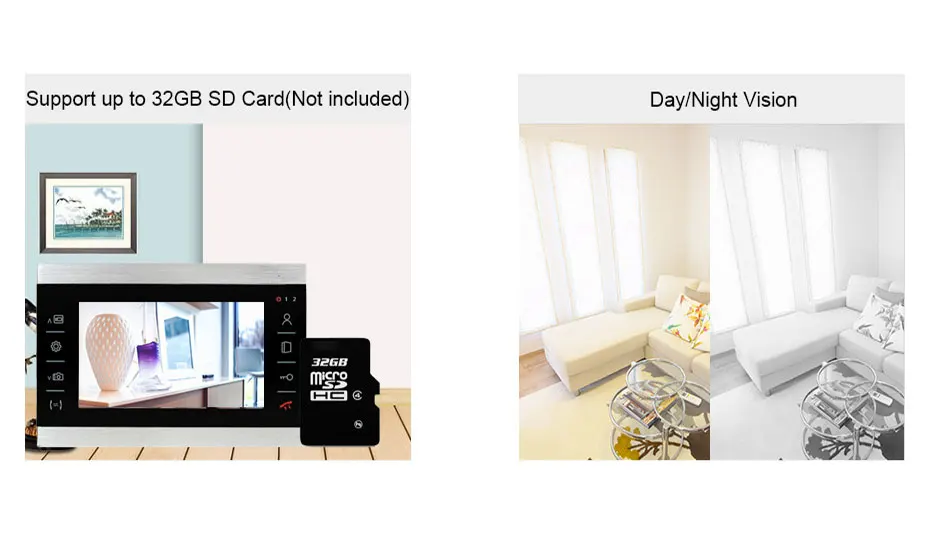

Video/Picture recording,up to 32GB SD card Supported(Not included)
When someone is ringing the doorbell or the motion detection is triggered,the monitor will record picture/video automatically in SD card

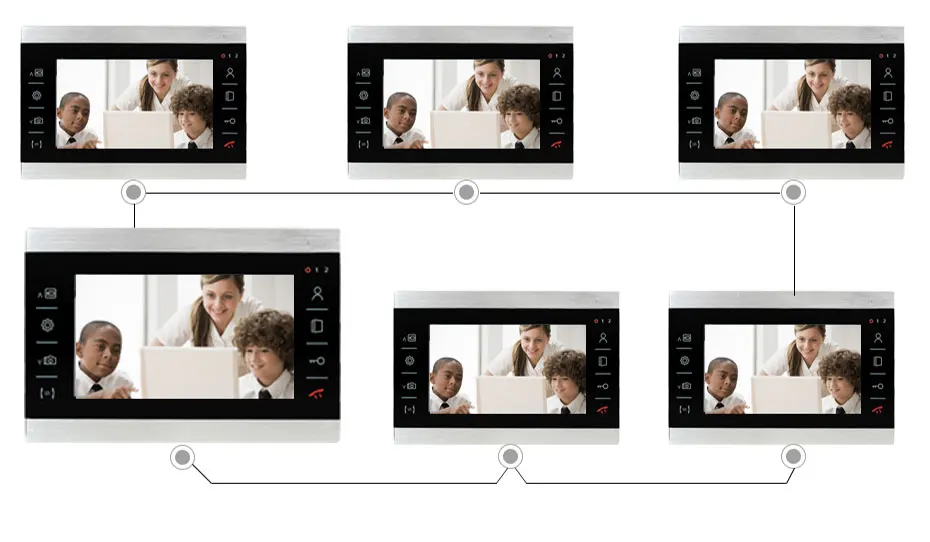

Call transfer Supported between monitor and monitor
It support communication between indoor monitor and outdoor camera.also support communication between monitor and monitor.
Adjust Lock Time
Support to connect an delay function electrical lock to this system. With this function,you just need to press the unlock button on monitor. Support adjuast the time between lock and unlock. so, make you more safety.

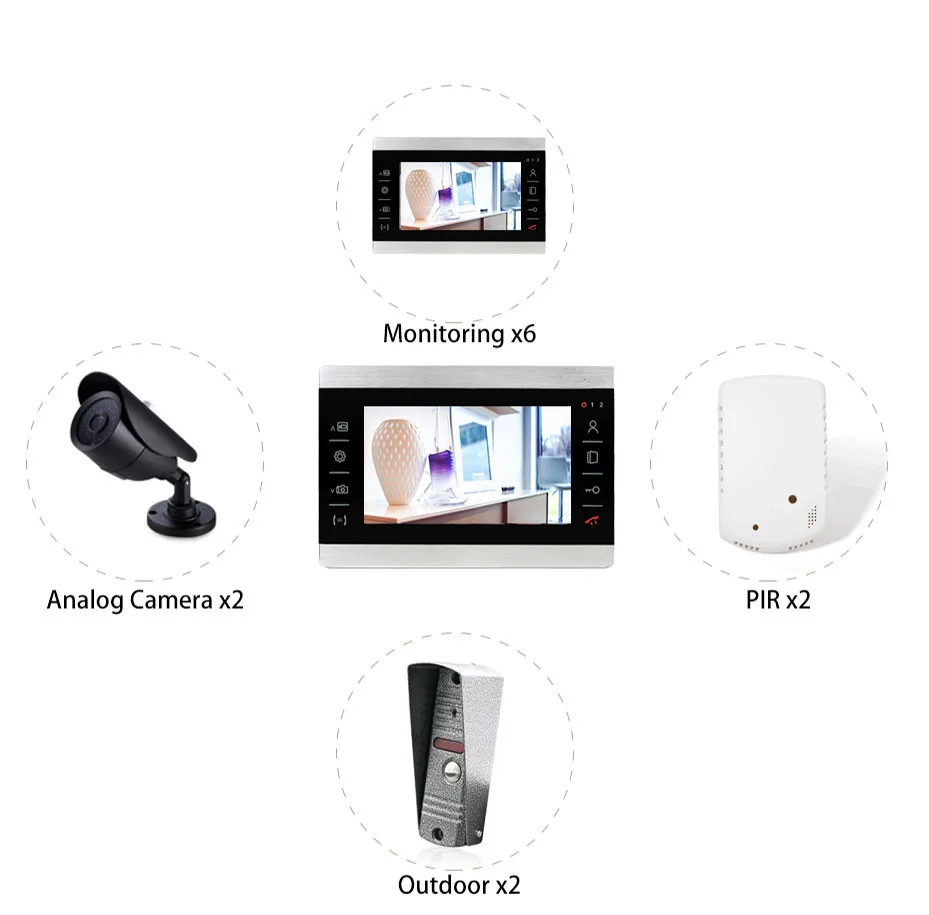

Multiple System Supported(Not included)
The system support up to 6 monitors,2 doorbells,2 CCTV Cameras and 2 alarm sensors.(Not included)
Russian and English Language available
There are Russian and English language available in the osd menu,you could choose as your request.
Indoor Monitor specification
Monitor | 7″ wide color HD TFT LED ,CVBS video input |
Resolution | 1024(RGB)×600(V) |
Memory | support external max. 32GB Class 10TF (Micro SD ) Note: Must be use ≥Class10 |
Intercom mode | Hands-free dual-way communication |
Stanby Current: | Maximum 250MA |
Work Current | Maximum 600MA |
Power input | External power DC12V |
Motion detection | Yes , For 2 Camera , 1Call Panel work in the same time |

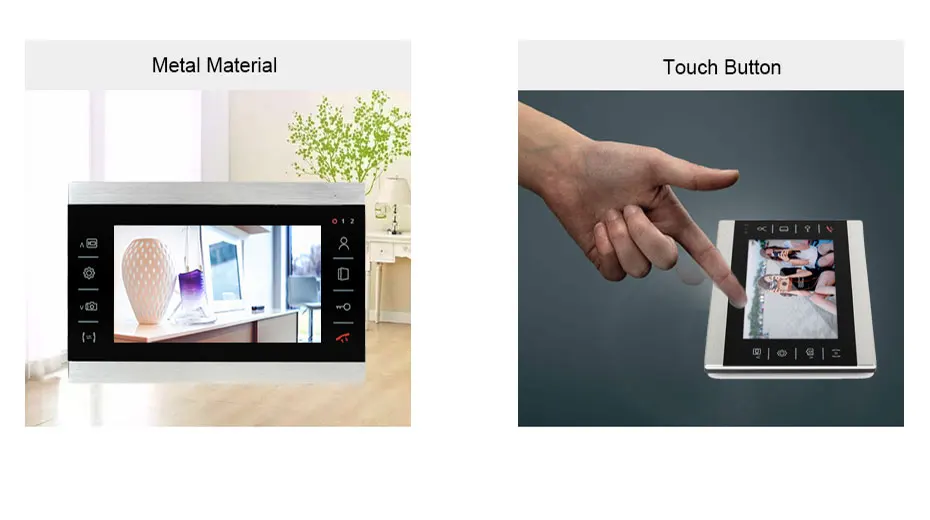

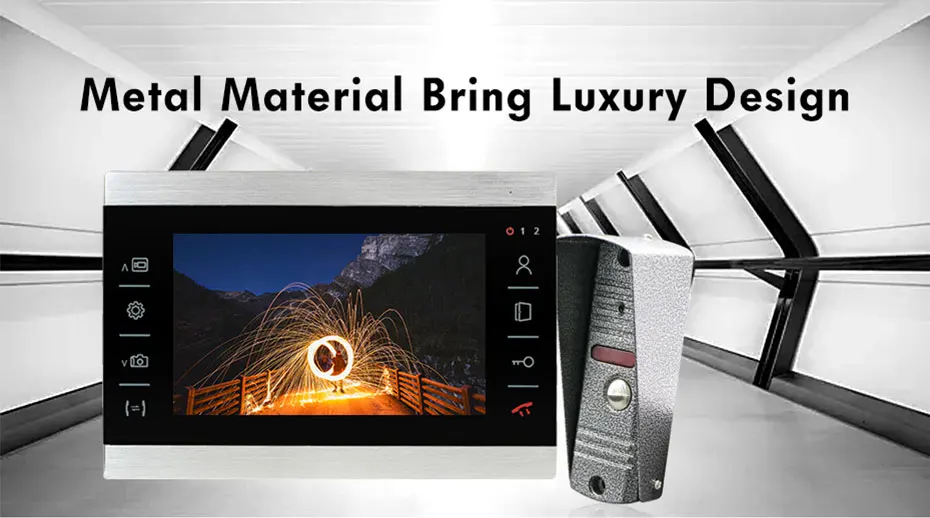

Material | Metal Panel |
Recording | picture:jpeg format;video:avi format |
Operation Temp. | 0~+50℃ |
Installation | Surface mount |
Function: | Unlocking/Monitoring/Internal calling/Transfer calling /Recording |
Advantage:Support Photo Frame/MP3 &MP4 player/Clock & Voice message Support 6 indoor monitors + 2 call panels + 2 Cameras Outdoor Doorbell Specification |
camera sensor | 1/3″ CMOS , 1200TV-Line |
Lens | 3.7mm Lens |
Night Vision | IR light |
Electronic lock | support,Exit button |
Power Consumption | 200mA Max. |
Material | aluminium alloy panel |

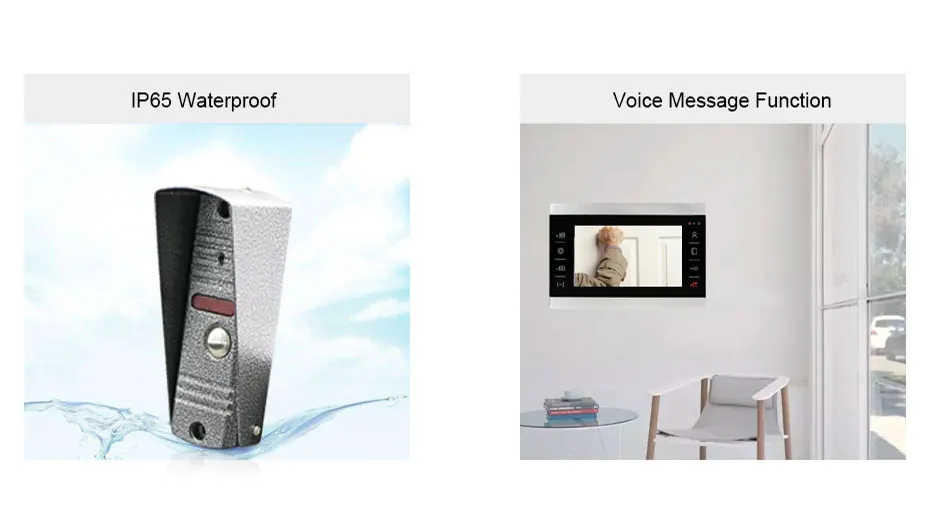

Waterproof | IP65 |
Operation Temp. | -40°c +60°c |
Installation | Wall mounted |
Monitor x 4 |
Monitor mounting plate x 4 |
Door camera x 2 |
Door camera mounting plate x 2 |
Power adapter x 4 |
200mm 4 pin connector x20 |
200mm 2 pin connector x4 |
Screw Bag x6 |
User Manual x 6 |
Guarantee Card x 6 |
Qualified certificate x 6 |
16GB SD Card x 1 |
Remark: Please note that the extension cable is not included in this item.You need to buy seperately according to your needs.
When transmission distance is longer,video and audio singnal suffer more attenuation.Please use standard cables to match
the transmission distance.if you have any questions please contact us before you order this item
We will send applicative power adapter to you according to your states.
