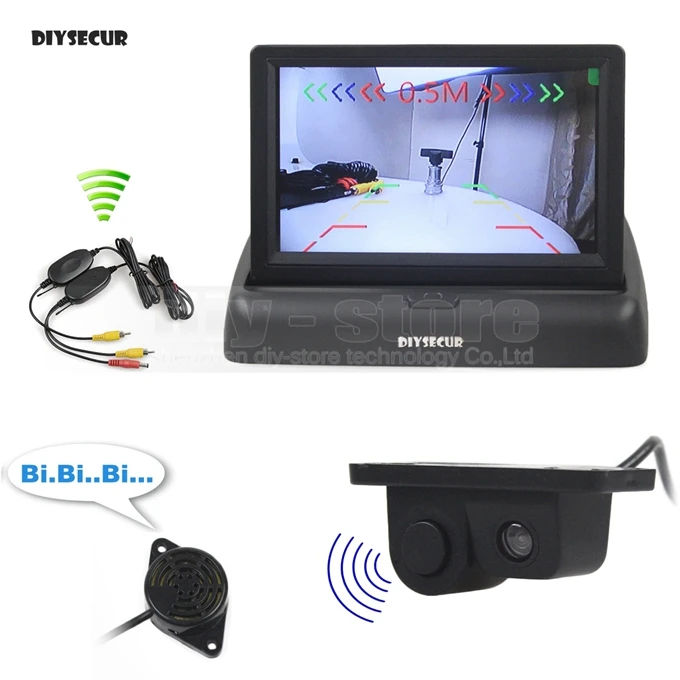

DIYSECUR Wireless 4.3 Inch Foldable Car Monitor + Waterproof Video Parking Radar Sensor Car Camera Parking System Kit

Wireless 4.3 inch TFT LCD Car Monitor Rear View Camera Parking System

The best solution for your car reverse system Waterproof Parking Radar camera with wide view angle 2.4GHz Wrieless video transmission
High quality TFT LCD monitor
2 channel video inputs
Easy installation

4.3 inch Foldable Rear View Car Monitor for Camera DVD VCR

Once your car is equipped this compact and fashionable video reverse system, the world behind your car will not trouble you anymore! What’s more, you can enjoy video which comes from DVD etc thanks to its 2 video inputs.

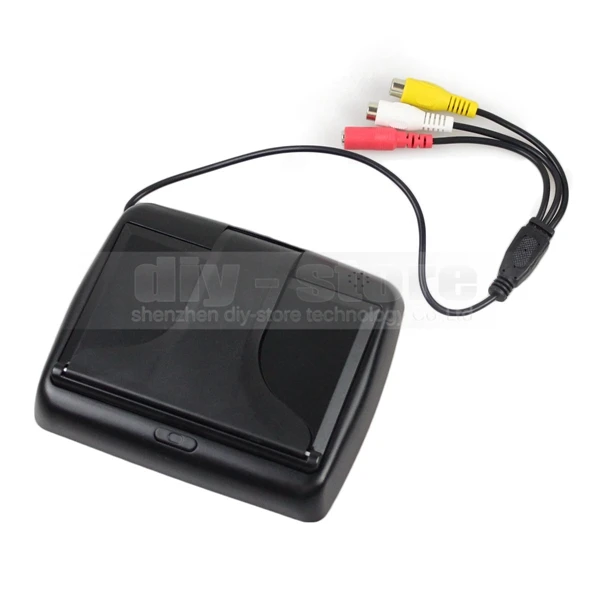

About 2 Video Inputs:

Two inputs are both video inputs, the white one for reversing camera, and the yellow one for other video equipment input, such as DVD video input.

As the unit can only display one video input at a time. Since the reversing camera is connected to your car’s reversing light power cable, when you reverse the car, the reversing camera will be powered on, and the monitor will display the white video input whose signal comes from the reversing camera.

When car reversing is finished, the reversing camera is powered off, the monitor will display the yellow video input again.

• 4.3” monitor, compact size with glossy case design for a luxury look;
• One button with foldable function for easy operation, better protection when unused;
• Connect up to 2 cameras for multi-direction view;
• Auto switch between 2 video inputs, support Video2 reversing priority;
• Cooling vents and double-sided paster design for better item protection;
• Compatibility with any CCTV/car reversing cameras, car DVD players.

Camera:

This Color CMOS Car Rear view Camera is a new and never used high quality color camera. With High-definition wide view angles and good waterproof functions, its perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.

• Build in parking sensor, can display both image and distance
• High-definition and 120 degree wide view angles
• With good waterproof function.
• Applicable to variety of Vehicles: car, truck, RV, mini-van etc
• Solve the issue of bad car rear view effect, can help reduce incidents and accident
• With its elegant and contemporary design, this camera is very popular
• When the car back up, the Image will show Reverse leading line
• Made of high quality and durable material
• Its simple and modest design and small size won’t draw any attention.
• We will send NTSC / PAL according to your country, if you have other requirements, please leave a message.

The alarm sound would become more rapid when the distance gets shorter and shorter, alarm mode and danger mode.

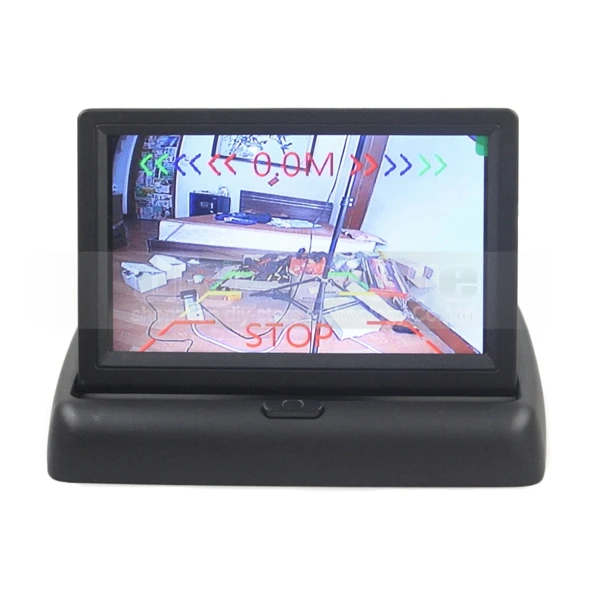

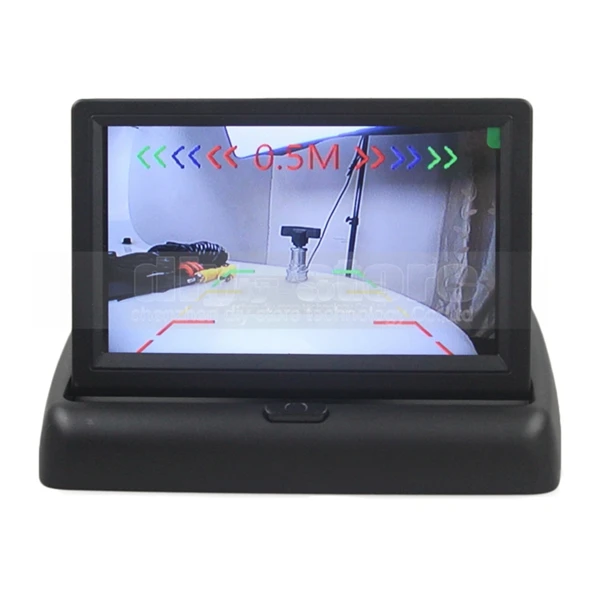

This is the camera image, there are both image and distance.

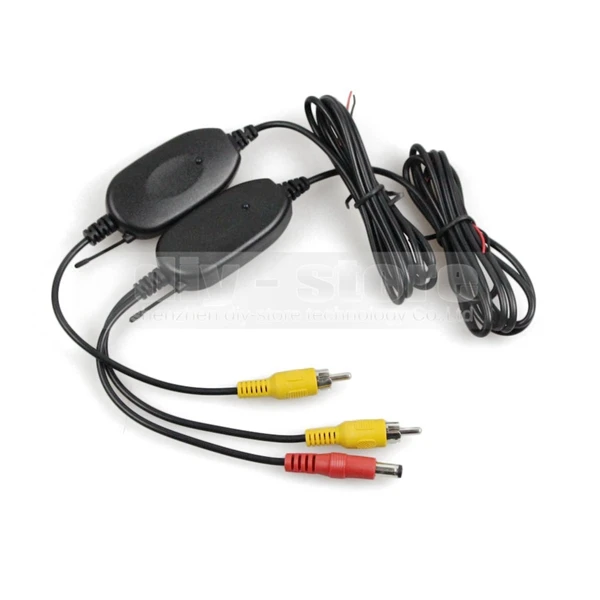

2.4G Wireless transmission & receriver

Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

• Range of the transmission: 8m-12m
• The shorter the distance between camera and monitor, the better transmission signal
• The image can be seen clearly without any obstacles

• Enter the “R”. Car Mirror Monitor display automatically rear view image.

• Enter the “N” or “D”. Car Monitor don’t display image or display AUX Video image.

Specifications:

Monitor:

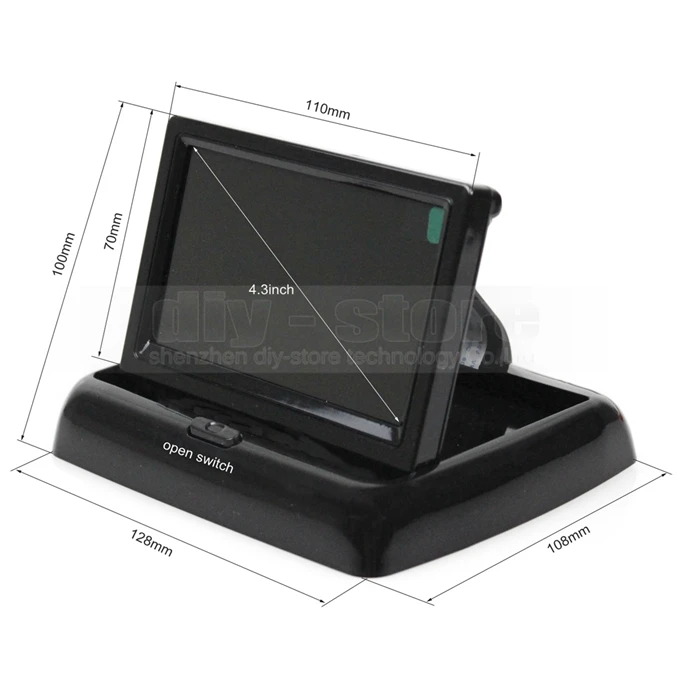

• Show foot size: 4.3 inch.Displays: TFT-LCD
• Resolution: 480 (H) x 240 (V)
• Power: 3W
• Video Input: AV1/AV2
• Signal format: PAL / NTSC / AUTO
• Brightness: 250 CD / m⊃2;
• Contrast: 300:1
• Rated Voltage: DC 12V

Camera:

• Camera image type: High performance color image
• Horizontal resolution: 420TV Lines
• Detection Range: 0.3m – 2m
• Detection Angle: 30 degree
• Alarming Vol: 70dB-90dB
• Minimum illumination: 0.1Lux
• Free viewing angle: 120º
• Waterproof: IP67
• Shockproof: 10G
• Video output: 1.0Vp-p75
• Power supply: DC 12V
• Video system: NTSC / PAL

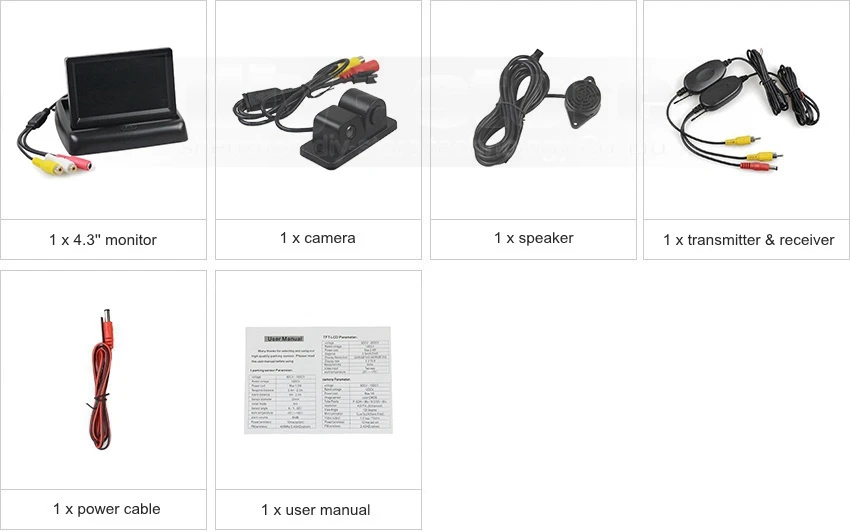

Packing list:
