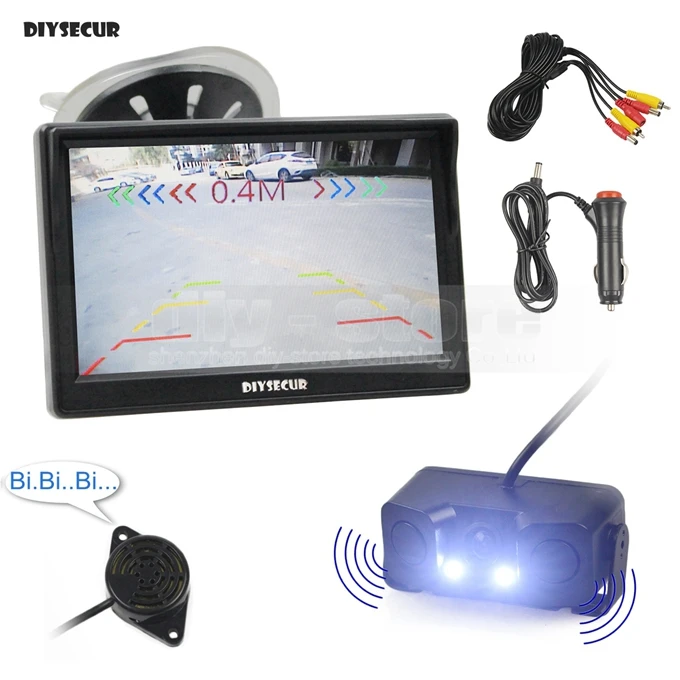

DIYSECUR 5 Inch TFT LCD Display Car Monitor + Waterproof Video Parking Radar Sensor Car Rear View Camera + Speaker 3 in 1

5 inch Car Monitor Rear View Camera Parking System 2CH Video Input

The best solution for your car reverse system Waterproof parking radar camera with wide view angle 6 meters video cable
High quality TFT LCD monitor
2 channel video inputs
Easy installation

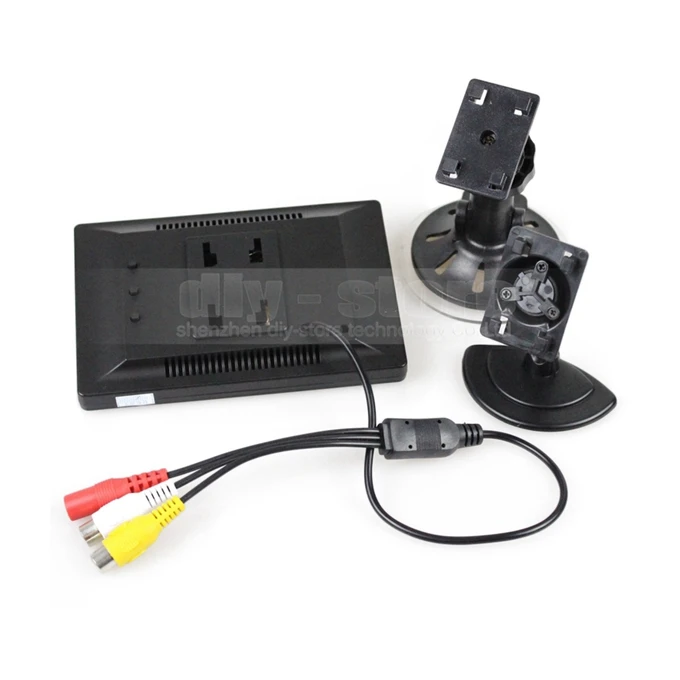

5inch Car Monitor with 2 Video Input + both Suction Cup & Bracket

Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.

1. Since reversing camera is connected to your car’s reversing light power cable, when you reverse the car, the reversing camera will be powered on. And monitor will display video input 1 whose signal comes from reversing camera.
2. When car leave reserving mode, reversing camera is powered off. The monitor will switch to input 2 display.

Camera:

This Color CMOS Car Rear view Camera is a new and never used high quality LED Night color camera. With High-definition wide view angles and good waterproof functions, its perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.

• Build in 2 parking sensors, can display both image and distance
• High-definition and 120 degree wide view angles
• With good waterproof function.
• Applicable to variety of Vehicles: car, truck, RV, mini-van etc
• Solve the issue of bad car rear view effect, can help reduce incidents and accident.
• Support IR Night color CMOS image
• With its elegant and contemporary design, this camera is very popular
• When the car back up, the Image will show Reverse leading line
• Made of high quality and durable material
• Its simple and modest design and small size won’t draw any attention.
• We will send NTSC / PAL according to your country, if you have other requirements, please leave a message.

DC12V Input Car Charger Power Adapter DC12V Output

This car cigarette lighter adapter charger is very useful and convenient for the devices in the car, it can power on the car monitor and camera, when you want to installed a rear view system then you don’t have to be fed up with the power any more, there also with the ON/OFF switch, when you back your car just need to press it then the devices power on.

• Color: Black
• Material: Plastic
• Input voltage: DC 12V
• Output: DC12V
• Connector Size: 5.5 x 2.1mm
• Cable length: 100cm
• Weight: 46g

The alarm sound would become more rapid when the distance gets shorter and shorter, alarm mode and danger mode.

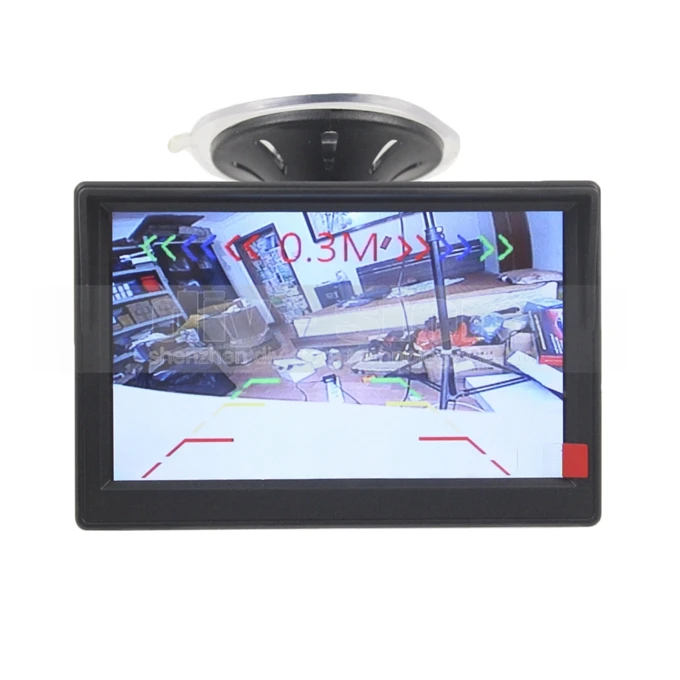

This is the camera image, there are both image and distance, this monitor is not included.

• Enter the “R”. Car Mirror Monitor display automatically rear view image.

• Enter the “N” or “D”. Car Monitor don’t display image or display AUX Video image.

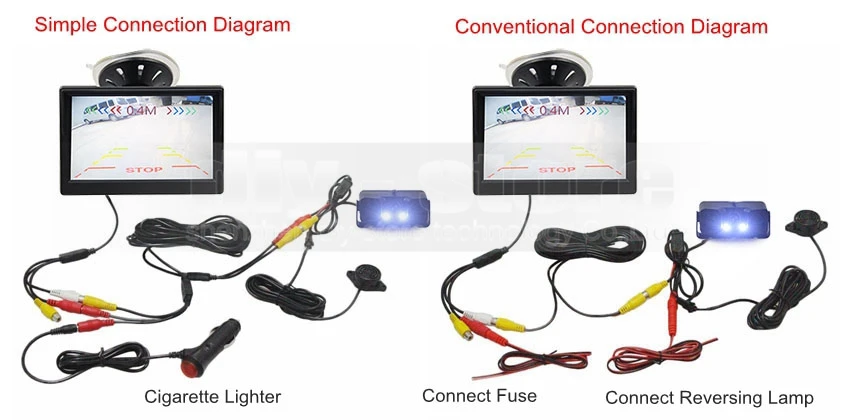

How to connect:

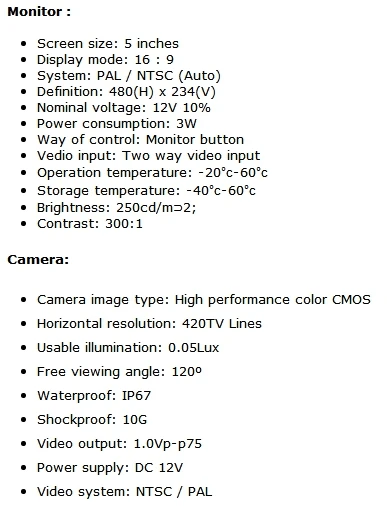

Specifications:

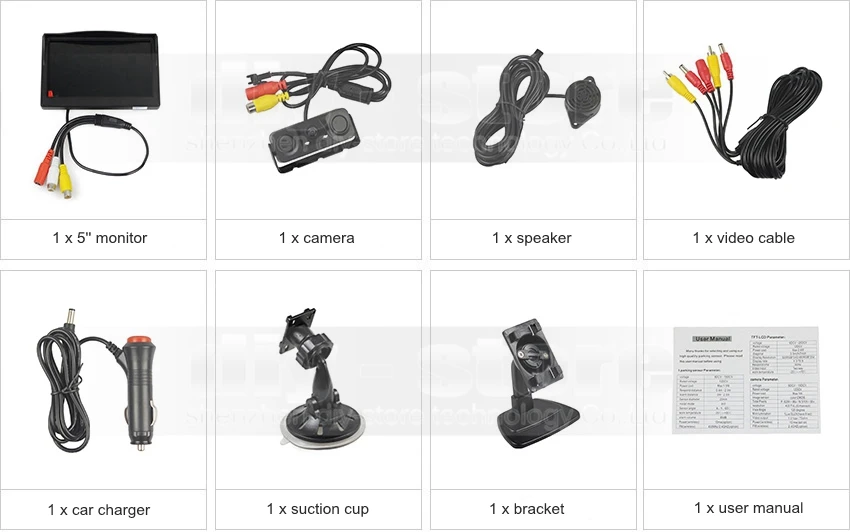

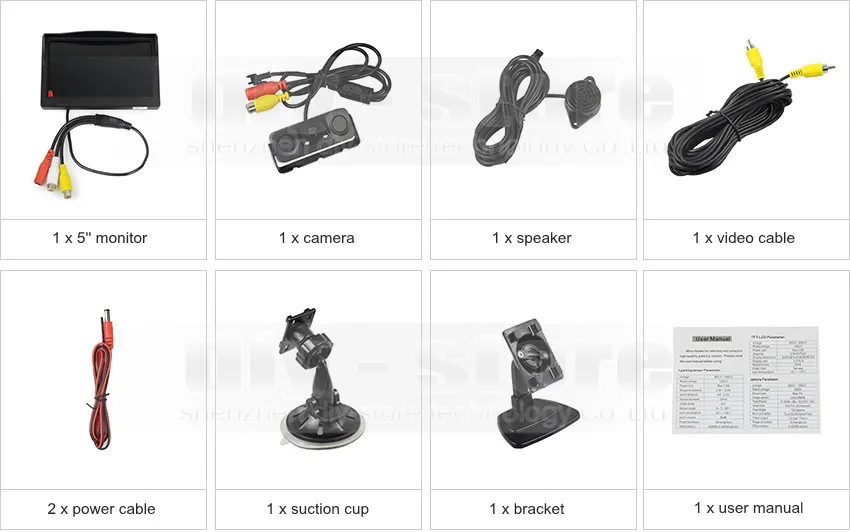

Packing list:

conventional connect

easy connect
