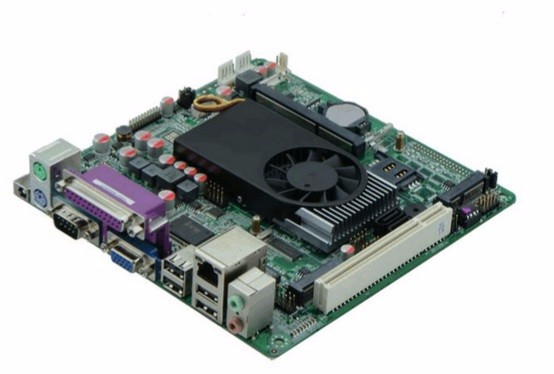

Atom D525 latest Tablet Pc Intel Industrial Motherboard Car PC Motherboard
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
Specifications
1.DC 12V Power Supply
2.Intel GMA3150 Graphics
3.1* PCI , VGA / LVDS
4.DDR3 Memory
5.1 Lan Port
|
Intel® GMA3150 Graphics |
|
|
Support VGA/LVDS synchronous/asynchronous display |
|
|
LVDS supports single 18bit |
|
|
Expansion Slots |
1* Mini-PCIE (Support WIFI/3G) |
|
1* PCI |
|
|
LAN |
1* RTL8105E 10/100Mbps Ethernet |
|
Support Wake-on-LAN and PXE function |
|
|
Storage |
2* SATAII 3Gbps |
|
1* MSATA (support SSD 3Gbps/USB WIFI) |
|
|
Audio |
Integrated Realtek HD ALC662 for 6-Channel output |
|
Support MIC/Line-out/Line-in |
|
|
Rear I/O |
1* 12V DC_JACK input |
|
1* PS/2 |
|
|
1* LPT |
|
|
1* COM, the 9th pin supports +5V/+12V charged function |
|
|
1* VGA |
|
|
4* USB 2.0 |
|
|
1* RJ_45 LAN |
|
|
1* AUDIO I/O (MIC and Line-out) |
|
|
Internal I/O |
1* JVGA1 2*5pin |
|
1* LVDS 2*10pin |
|
|
1* COM, the 9th pin supports +5V/+12V charged function |
|
|
1* AUDIO pin (Front Audio interface 2*5pin) |
|
|
4* USB 2.0 |
|
|
1* FP1 (2*5pin Front panel buttons and LED connected) |
|
|
1* PS/2 |
|
|
1* LVDS 1*6pin |
|
|
2* PWROUT (Hard drive power connector) |
|
|
1* ATX_12V (Can be used as input and output 12V power connector) |
|
|
1* SIM |
|
|
Fan interface |
1* CPUFAN and SYSFAN 3pin |
|
BIOS |
AMI 8MB DPI Flash ROM |
|
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
|
Power Input |
DC_12V Single power supply |
|
Operating Temp. |
-10°C~60°C |
|
Storage Temp. |
-20°C~70°C |
|
Humidity |
0%-95%(relative humidity; non-condensing) |
|
Dimension |
170mm x 170mm |
