89% efficiency good quality low price factory direct sale 100 watt 48v waterproof power supply
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
89% efficiency good quality low price factory direct sale 100 watt 48v waterproof power supply
100W Waterproof Single Output Switching Power Supply LPV-100 series
Features:
Constant voltage design
Universal AC input/Full range
Withstand 300VAC surge input for 5 seconds
Protections: short circuit/ over load/ over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level
Fully isolated plastic case
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 year warranty
|
OUTPUT |
||||||||
|
Model |
LPV-100-5 |
LPV-100-12 |
LPV-100-15 |
LPV-100-24 |
LPV-100-36 |
LPV-100-48 |
||
|
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
||
|
Rated Current |
12A |
8.5A |
6.7A |
4.2A |
2.8A |
2.1A |
||
|
Current Range |
0-12A |
0-8.5A |
0-6.7A |
0-4.2A |
0-2.8A |
0-2.1A |
||
|
Rated Power |
60W |
102W |
100.5W |
100.8W |
100.8W |
100.8W |
||
|
Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
||
|
Voltage Tolerance |
±8% |
±5% |
||||||
|
Line Regulation |
±1% |
|||||||
|
Load Regulation |
±6% |
±2% |
||||||
|
Setup, Rise Time |
2000ms, 25ms/230VAC 2000ms, 25ms/115VAC |
|||||||
|
Hold Up Time |
50ms/230VAC 14ms/115VAC at full load |
|||||||
|
INPUT |
||||||||
|
Voltage Range |
90~264VAC 47-63Hz; 127~370VDC |
|||||||
|
AC Current |
2.2A/115V 1.2A/230V |
|||||||
|
Efficiency |
80% |
85% |
87% |
88% |
88% |
89% |
||
|
Inrush Current |
Cold Start 75A at 230VAC |
|||||||
|
Leakage Current |
0.25mA/240VAC |
|||||||
|
PROTECTION |
||||||||
|
Over Load |
110-150% rated output power |
|||||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||||
|
Over Voltage |
5.75-6.75V |
13.8-16.2V |
17.25-20.25V |
27.6-32.4V |
41.4-48.6V |
55.2-64.8V |
||
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||||||
|
ENVIRONMENT |
||||||||
|
Working Temp.Humidity |
-25 ~ +70deg (Refer to “Derating Curve”) 20-90% RH non-condensing |
|||||||
|
Storage Temp.Humidity |
-40~+80deg; 10%~95%RH |
|||||||
|
Temp.Coefficient |
±0.03%/deg(0~50deg) |
|||||||
|
Vibration |
10~500Hz,2G 10min,/1cycle,period for 60min,each along X,Y,Z axes |
|||||||
|
SAFETY |
||||||||
|
Withstand Voltage |
I/P-O/P:3KVAC |
|||||||
|
Isolation Resistance |
I/P-O/P>100M Ohms / 500VDC / 25deg / 70% RH |
|||||||
|
STANDARD |
||||||||
|
Safety Standard |
UL8750, CSA C22.2 No.250.13-12, UL879,CSA C22.2 No.207-M89, IP67 approved, design refer to EN60950-1 |
|||||||
|
EMC Standard |
EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A |
|||||||
|
OTHERS |
||||||||
|

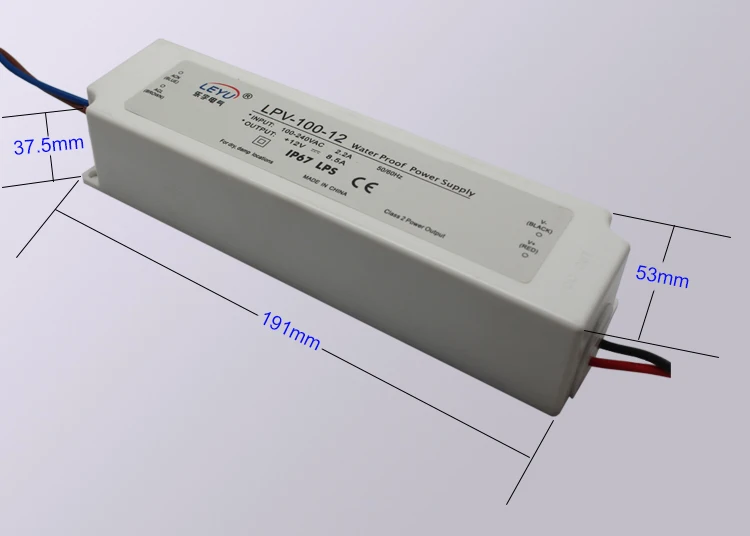

Dimension |
190*52*37mm(L*W*H) |
|||||||
|
Weight |
0.63kg;20pcs/13.6kg/0.55CUFT |
|||||||
|
|
||||||||
